Callaway Now Offers Forged Chrome Wheels for the C8 Corvette

Save 26 pounds of unsprung weight on your C8 Corvette with Callaway's all new forged nine-spoke chrome wheels

by Rob LoszewskiRob Loszewski
13.7K views

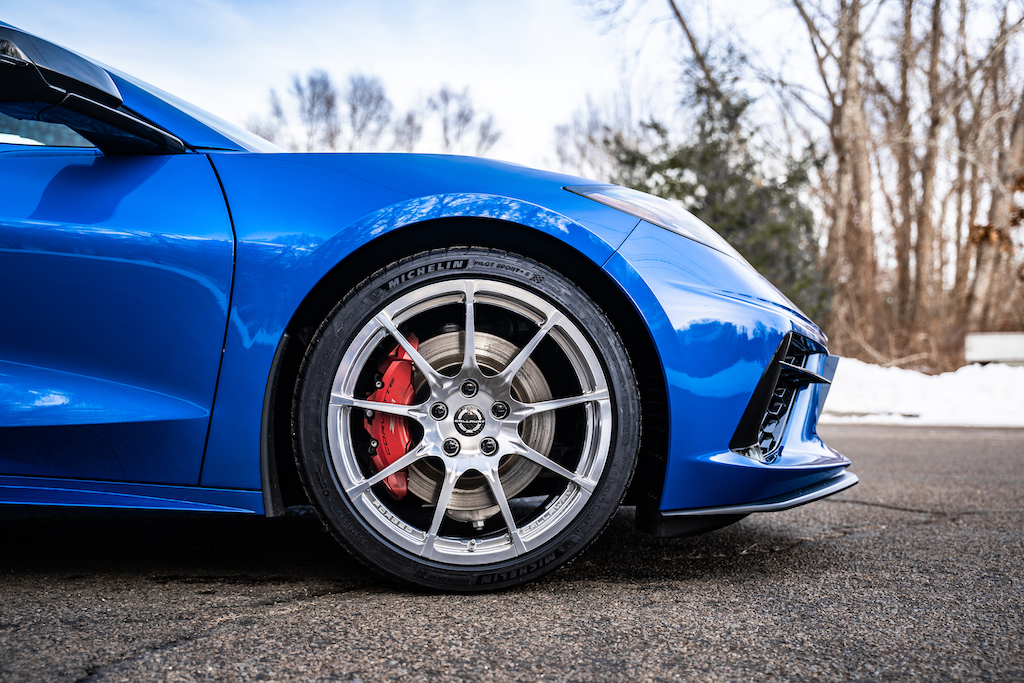

Save 26 pounds of unsprung weight on your C8 Corvette with Callaway's all new forged nine-spoke chrome wheels

While painted wheels have dramatically grown in popularity over the years, many Corvette enthusiasts were disappointed when the C8 Corvette was officially unveiled without a chrome wheel option.

Thanks to Callaway Cars of Old Lyme, Connecticut, you can now have forged chrome-like wheels for your C8 Corvette and save 26 lbs of unsprung weight in the process.

From Callaway:

CALLAWAY FORGED C8 CORVETTE WHEELS

Strong. Light. Sophisticated.

We are pleased to offer a true, fully-forged wheel in a refreshed nine-spoke design to complement the C8’s styling and which is engineered to improve performance by removing over 26 lbs (12 kg) of rotational mass compared to the original equipment. Callaway Forged Nine-Spoke C8 Corvette Stingray Wheels 2020-2021.

The forged aluminum construction offers greater strength at significantly less mass, offering peace-of-mind against typical cast-wheel construction being prone to damage over poor road surfaces. The material properties of the forged alloy allow mass optimization in the design process by way of FEM (Finite Element Modeling) which results in a wheel set 23% lighter than the OE cast wheels. (19% front, 26% rear), despite their increased width, which is 0.5” over original. Offset is slightly reduced for a flush appearance and increased track width.

Reducing unsprung mass and rotational inertia offers many vehicle performance benefits as less energy is required to accelerate, change direction, and decelerate the wheels. The suspension performance is also improved as it has less work to do to maintain tire contact patch to the road surface. This means that driver inputs are more efficiently communicated to the tires: acceleration, steering inputs and braking. They utilize the same Michelin Pilot Sport 4S (ZP) or all-season OE tire fitments and compounds developed for the C8.

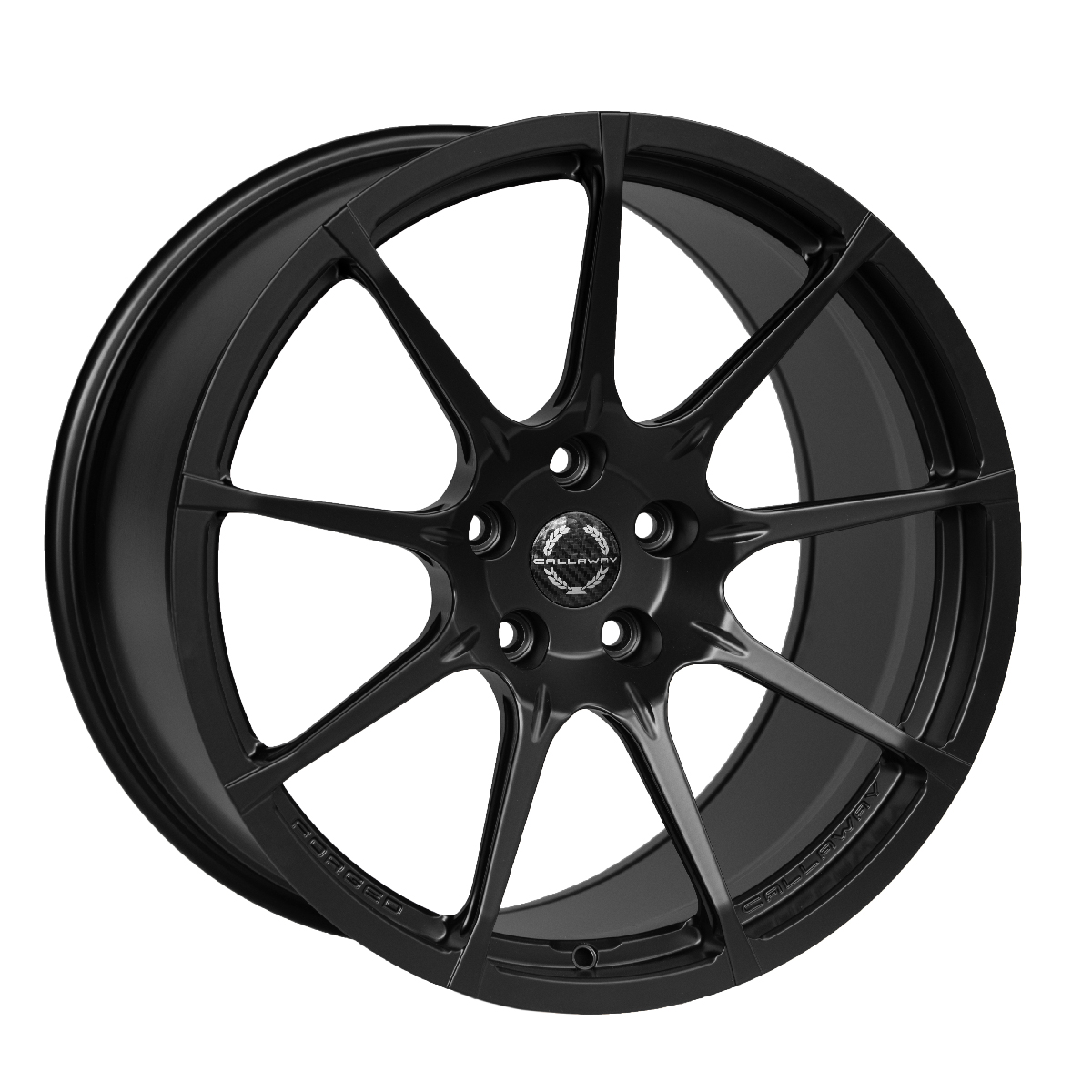

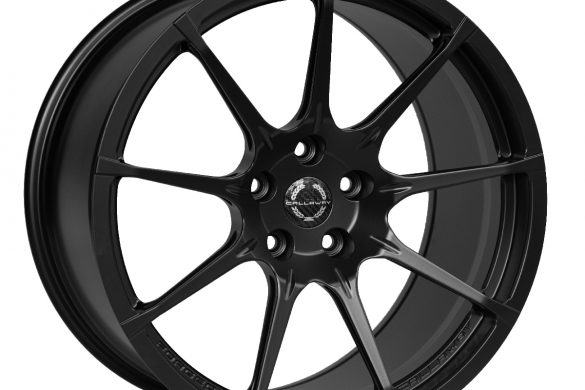

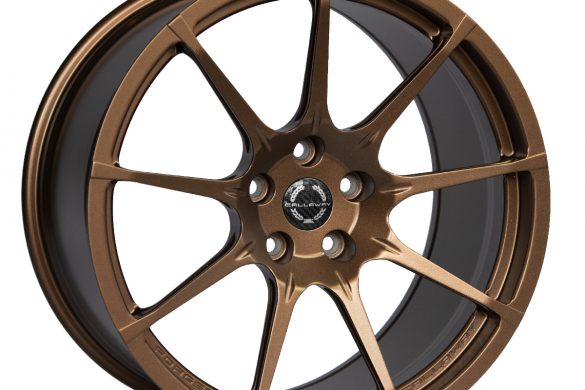

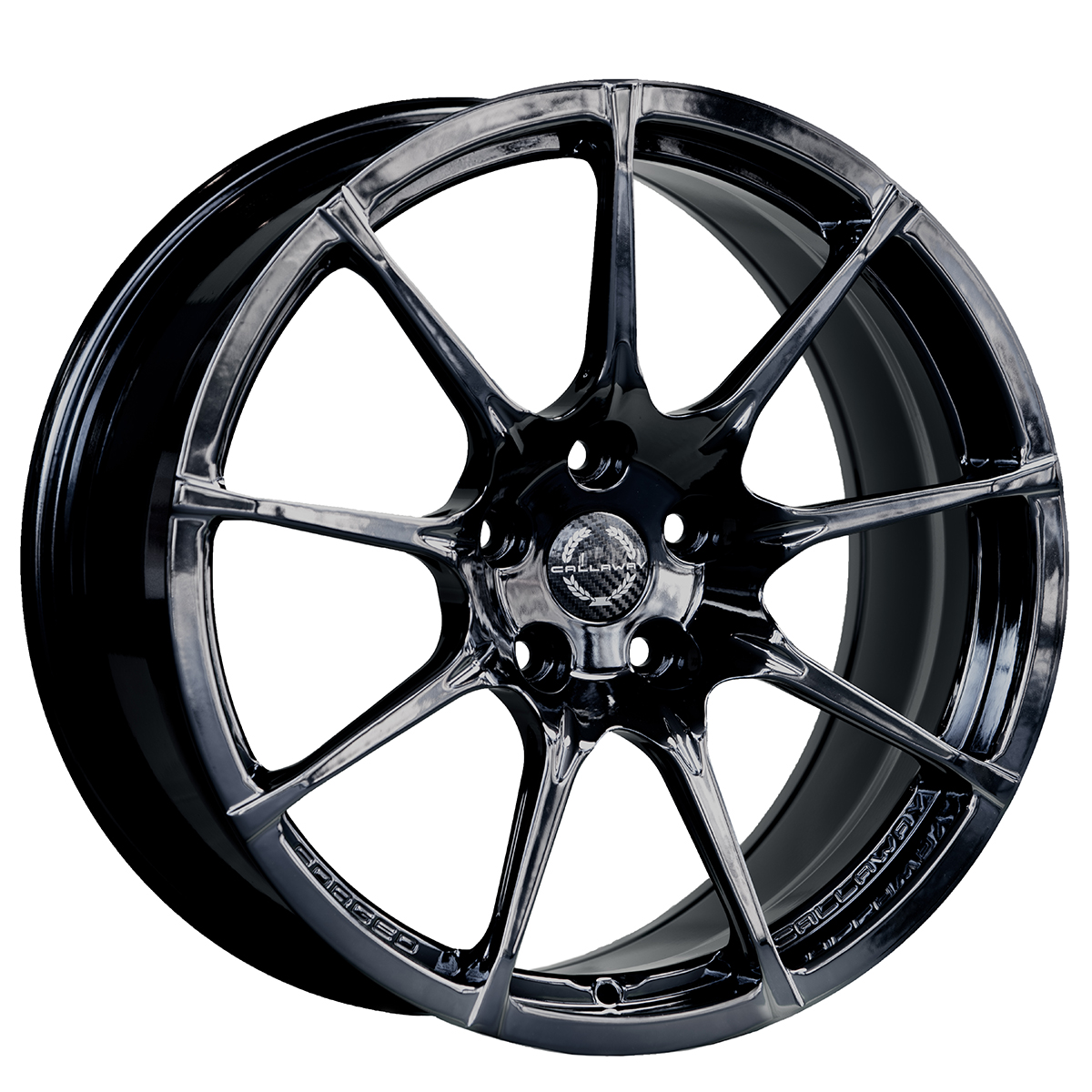

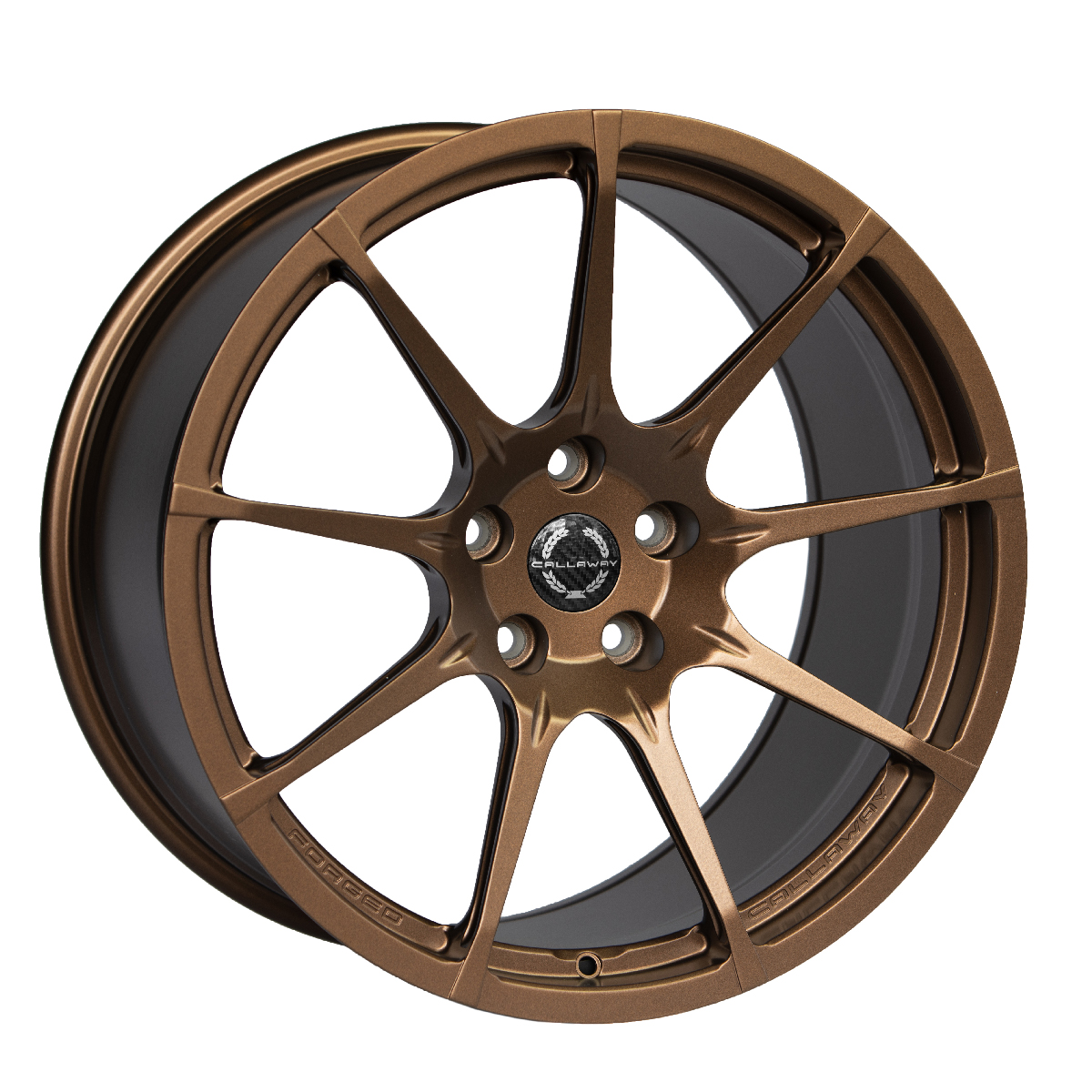

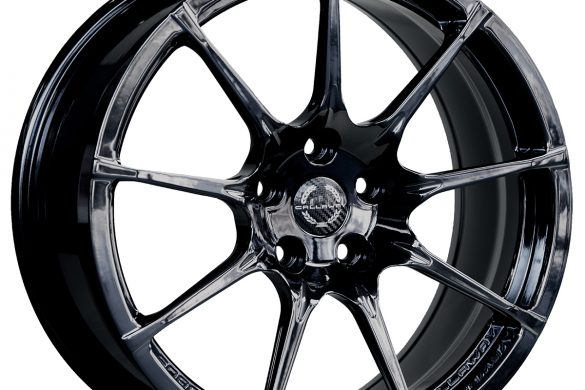

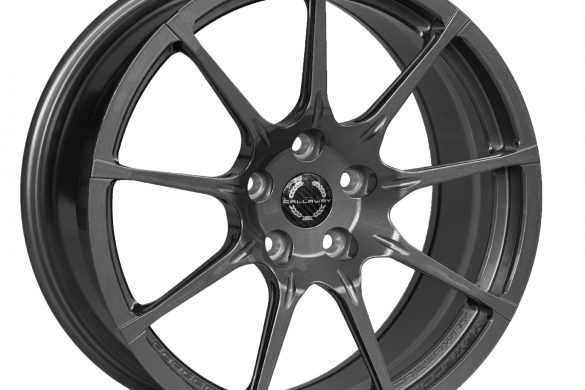

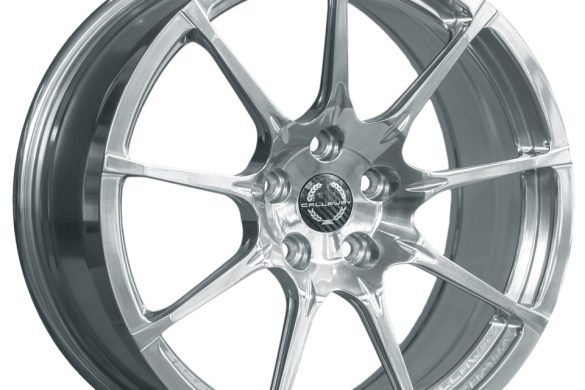

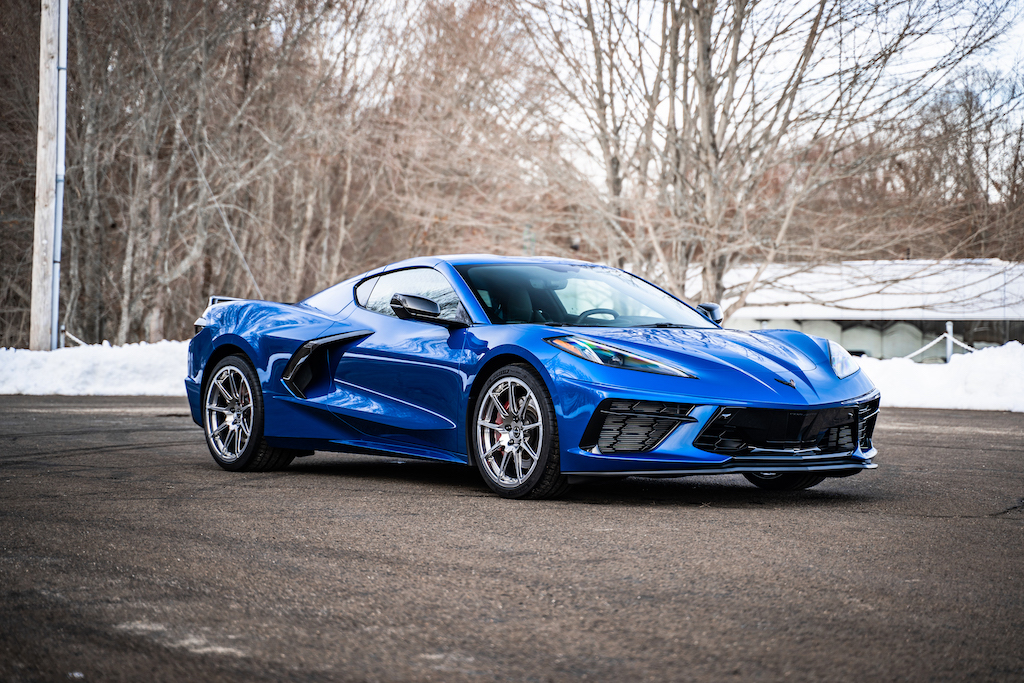

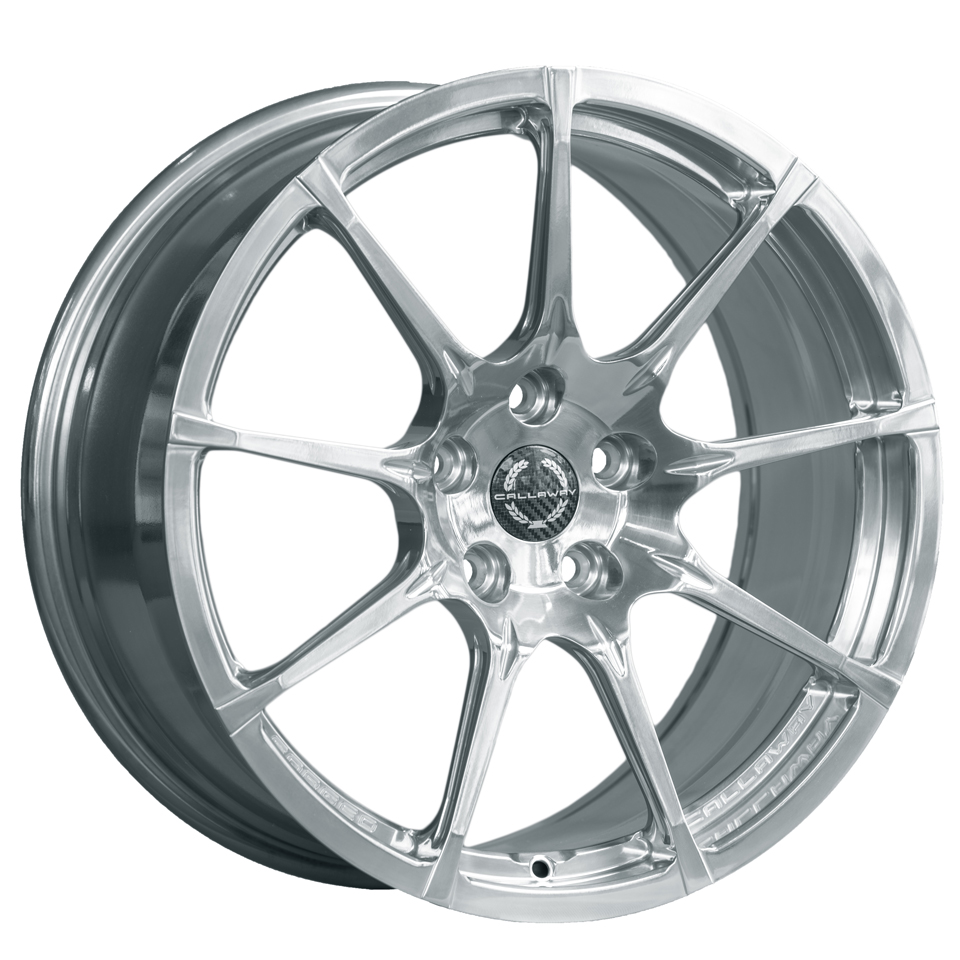

Save 26 pounds of unsprung weight on your C8 Corvette with Callaway's all new forged nine-spoke chrome wheelsCallaway designers have always preferred odd-numbered spoke designs to convey a proper visual and mechanical balance; while thin spokes promote brake-cooling airflow, and are easy to clean. A variety of finishes are offered: satin black painted, gloss titanium painted, matte bronze painted, as well as two premium finishes: Black Chrome PVD and Ceramic Polished: a machine-automated polishing that is protected by a clear-coating which does not detract from the brilliance of the polished alloy. All finishes carry a 3-year warranty.

Carbon fiber center caps and lug nuts are included with each wheel. Select either bright chrome or black chrome PVD lug nuts when ordering. Optional wheel lock sets are also available in bright chrome or black chrome PVD.

Save 26 pounds of unsprung weight on your C8 Corvette with Callaway's all new forged nine-spoke chrome wheelsThese new wheels have passed performance testing per TÜV and ISO standards for fatigue bending, impact and rolling performance with exceptional results.

Finishes

Click on the images below for a larger view:

Dimensions / Weight


FRONT/REAR DIAMETER x WIDTH OFFSET WEIGHT
Front 19” x 9.0” ET46 20.2 lb (9.2 kg)
Rear 20” x 11.5” ET58 23.6 lb (10.7 kg)

For information and photos, visit Callaway Cars
