#19-NA-217: Manual Transmission Stalling, Clutch Chatter and/or Hard Shifting into 1st Gear or Reverse; Automatic Transmission Vibration on Launch and/or Engine Noise - (Dec 21, 2020)

Subject Manual Transmission Stalling, Clutch Chatter and/or Hard Shifting into 1st Gear or Reverse; Automatic Transmission Vibration on Launch and/or Engine Noise

Brand:

Model:

Model Year:

VIN Breakpoint

Engine:

Transmission:

from

to

from

to

Chevrolet

Corvette

2014

2019

6.2L (LT1, LT4)

6L80 Automatic (MYC), 8L90 Automatic (M5U) or Manual



Involved Region or Country

North America, Europe, Russia, Middle East, Japan, Thailand

Condition

Important: If the vehicle came in with a rattle noise coming from the front of the vehicle when the engine is running at slower engine speeds and no other concerns, refer to Service Bulletin 18-NA-268.

Some customers may comment on any of the following conditions:

Note: On Automatic Transmission equipped vehicles, this may also happen after the driveline was replaced for another reason.

  • For Manual Transmission equipped vehicles:
    • Stalling
    • Clutch chatter
    • Hard shifting into 1st gear or Reverse

  • For Automatic Transmission equipped vehicles:
    • Vibration on takeoff
    • Clunk noise

Cause

This condition may be caused by excessive crankshaft endplay associated with a damaged thrust bearing.

  • Please use following information before considering an engine or crankshaft replacement.

Correction

If a vehicle comes in with the conditions listed above, refer to the Service Procedure below.

Note: Complete the SI diagnostics and the Cost Comparison Worksheet for Assembly Repair vs Replacement to determine if the engine requires a repair or replacement. DO NOT the replace engine assembly for this concern. Only replace the engine assembly if other damage is found.

2014 - 2019 Corvette: Service Bulletin: #19-NA-217: Manual Transmission Stalling, Clutch Chatter and/or Hard Shifting into 1st Gear or Reverse; Automatic Transmission Vibration on Launch and/or Engine Noise - (Dec 21, 2020)


Example of a good thrust bearing face.

Service Procedure

Important: Follow the service procedures outlined in Service Bulletin 18-NA-268 for DSA inspection and possible repair.

    1. Validate the crankshaft endplay is within specification (0.0015-0.0086 (0.040-0.220 mm).
      • If endplay is found to be out of specification, remove the engine oil pan and inspect for possible crankshaft thrust bearing and/or crankshaft wear.
    2. Start with removing the middle thrust main bearing cap.
2014 - 2019 Corvette: Service Bulletin: #19-NA-217: Manual Transmission Stalling, Clutch Chatter and/or Hard Shifting into 1st Gear or Reverse; Automatic Transmission Vibration on Launch and/or Engine Noise - (Dec 21, 2020)

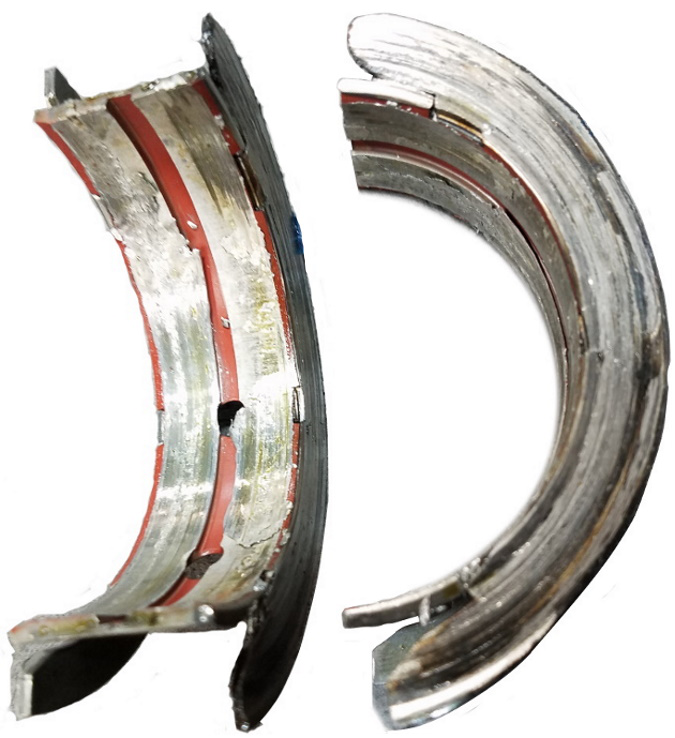

    1. Inspect the thrust bearing for wear on one side and crankshaft on the corresponding mating surface. The graphic above shows an example of a damaged thrust bearing.

Note: It is not necessary to replace the engine assembly for this condition.

    • If wear is evident (3 vertical channels worn off), it will be necessary to replace the crankshaft, connecting rods and main bearings.
  1. Refer to Crankshaft and Bearing Removal in SI.

If bearing damage is found and if the vehicle is equipped with a dry sump system, it will be necessary to replace the oil tank with lines and oil cooler.

Parts Information

Causal Part

Description

Part Number

Qty

X

CRANKSHAFT (LT1)

12674745 (EXC Z52)

1

X

CRANKSHAFT (LT1)

12674744 (Z52)

1

X

CRANKSHAFT (LT4)

12674743

1

N/A

BOLT, CR/SHF BRG CAP (M10X2X96) (LT1/LT4)

11548076

10

N/A

BOLT, CR/SHF BRG CAP (M10X2X82) (LT1/LT4)

11548075

10

N/A

BOLT, CR/SHF BRG CAP (M8X1.25X25 HEX FLANGE) (LT1/LT4)

11546565

10

N/A

SEAL, CR/SHF FRT OIL (LT1/LT4)

12693255

1

N/A

SEAL, CR/SHF RR OIL (LT1/LT4)

89060436

1

N/A

BEARING KIT, CR/SHF (LT1/LT4)

12656814

1

N/A

BEARING KIT, CONN ROD (LT1/LT4)

12683811

1

N/A

BEARING, CLU/PILOT (Manual Transmission Only) (LT1/LT4)

12557583

1

N/A

TNK, ENG OIL (LT1/LT4 Dry Sump Only Z52)

12680701

1

N/A

HOSE, AUX ENG OIL TK INL

23299434

1

N/A

HOSE, AUX ENG OIL TK OTLT

23299435

1

N/A

BOLT, A/TRANS FLEX PLT (M11X1.5X19) (LT1/LT4)

11547118

8

N/A

OIL, Engine

Refer to EPC

N/A

FILTER, OIL



Version

3

Modified

Released February 4, 2020

March 24, 2020 – Added CRANKSHAFT (LT1) 12674744 (Z52) to the Parts Information section and corrected P/N 11547188 to 11547118.

December 21, 2020 – Updated some quantities in the Parts Information section.
