| General |
| |
Coupe |
Convertible |
Z06 |
| Model |
1YY07 |
1YY67 |
1YY37 |
| Body
Style |
2-door Hatchback Coupe
|
2-door Convertible |
2-door Fixed-Roof Coupe
|
| Passenger
Capacity |
2
|
| EPA
Vehicle Class |
Two-Seater
|
| Primary
Structure |
Unitized
Steel
|
| Body
Material |
Fiberglass
|
| Curb
Weight, est. auto trans (kg/lbs.)(1) |
1460/3212 |
1458/3207 |
1409/3130 |
| Weight
Distribution (percent front/rear)(1) |
51/49 |
51/49 |
53/47 |
| Assembly
Plant |
Bowling
Green, Kentucky
|
| Export
Availability |
Europe,
Middle East, Africa, Japan, Canada, Mexico
|
Canada,
Mexico |
| (1)
With automatic transmission on coup/convertible, manual
on Z06 |
| Restraints |
| Air
Bags |
Std. Driver & Passenger |
| Safety
Belts |
Std. Driver & Passenger |

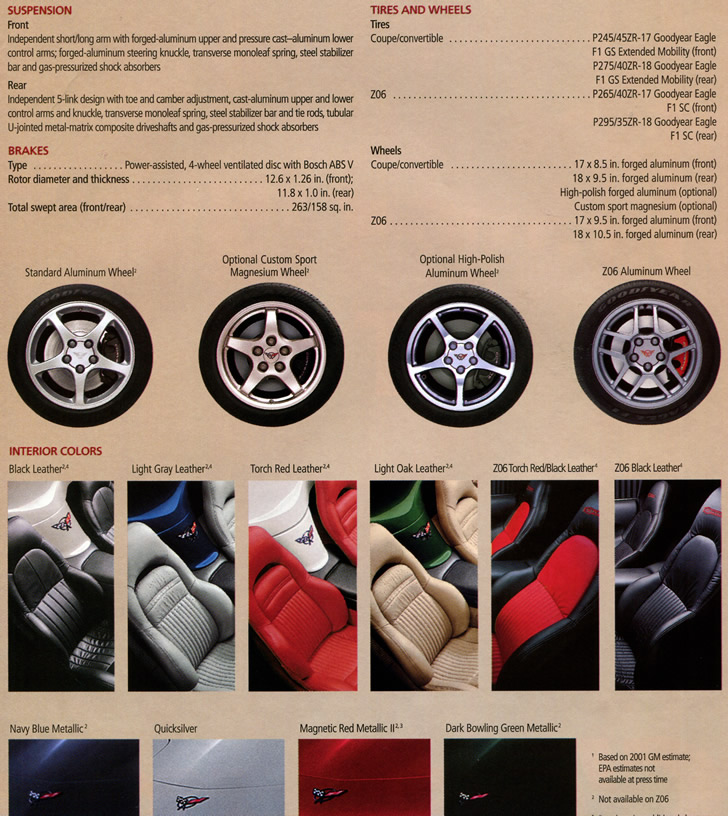

| Suspension
Package Availability |
| FE1
Suspension |
Standard |
N/A |
| F45
(w/Selective Real Time Dampening) |
Optional |
N/A |
| Z51
Performance Suspension |
Optional |
N/A |
| FE4
Suspension (Z06 only) |
N/A |
Standard |
| Suspension
- Front |
| Type |
Short/Long arm (SLA) double wishbone |
| Features |
Forged
aluminum upper control arm |
| |
Cast
aluminum upper control arm |
| |
Transverse-mounted
composite leaf spring |
| |
Monotube
shock absorbers(2) |
| |
Lubed-for-life
ball joints |
| |
Individual
wheel height adjusters |
| Stabilizer
Bar diameter (mm/in) |
Std
- 23.1 / .91F45 - 23.1 / .91 Z51 - 28.6 / 1.13 |
FE4
- 30.0 / 1.18 |
| Stabilizer
Bar wall thickness (mm/in) |
Std
- 3.81 / .15 F45 - 3.81 / .15 Z51 - 4.15 / .16 |
FE4
- 4.50 / .18 |
| Shock
Absorber dia. (mm/in) |
Std
- 36.0 / 1.42 F45 - 54.0 / 2.13 Z51 - 36.0 / 1.42 |
FE4
- 45.0 / 1.77 |
| (2)
Includes Selective Real Time Damping control on F45
Suspension |
| Suspension
- Rear |
| Type |
Short/long
arm (SLA) double wishbone |
| Features |
Cast
aluminum upper & lower control arms |
| |
Transverse-mounted
composite leaf spring |
| |
Monotube
shock absorbers (1) |
| |
Lubed-for-life
ball joints |
| |
Individual
wheel height adjusters |
| Stabilizer
Bar diameter (mm/in) |
Std
- 19.1 / .75 --- F45
- 19.1 / .75 --- Z51
- 21.7 / .85 |
FE4
- 21.7 / .85 |
| Stabilizer
Bar wall thickness (mm/in) |
Std
- 2.0 / .08 --- F45
- 2.0 / .08 --- Z51
- 3.0 / .12 |
FE4
- 3.0 / .12 |
| Shock
Absorber dia. (mm/in) |
Std
- 36.0 / 1.42 --- F45
- 54.0 / 2.13 --- Z51
- 36.0 / 1.42 |
FE4
- 45.0 / 1.42 |
| (1)
Includes Selective Real Time Damping control on F45
Suspension |
| Stability
Control System |
| Name |
Second-Generation
Active Handing |
| Function |
Works
with Corvette’s ABS and Traction Control systems
to assist the driver in keeping the car stable and balanced
in emergency or spirited driving conditions - on wet
or dry surfaces.(2) Carefully calibrated to avoid unwanted
intrusion into thedriving experience. |
| Special
Componentry |
Brake
pressure modulator, steering wheel angle sensor, lateral
accelerometer, and unique core software algorithms. |
| 2001
Improvements |
-Active
Handling is now standard on all Corvette models
|
| |
-New
lighter-weight Bosch 5.3 pressure modulator provides
better overall response and improved pressure apply
times in cold weather. |
| |
-Electronic
rear proportioning algorithm eliminates rear brake proportioning
valve. |
| |
-New
algorithms for more precise, less intrusive control
of sideslip angle rate, rear brake stability and wheelspin. |
| |
-The
unique-to-Corvette Competitive Mode may now be activated
without bringing the car to a stop |
| (2)
A Note of Caution: The overall effectiveness of the
Corvette Active handling System is directly related
to available tire traction and the aggressiveness of
a given maneuver. Active Handling is designed to use
existing traction to assist the driver - but it cannot
overcome the laws of physics. Please drive responsibly. |
| Steering |
| Type |
Speed-Sensitive,
Power-Assisted, Magnetic Variable Effort (MagnaSteer) |
| Ratio |
10.1:1 |
| Turns,
lock-to-lock |
2.66 |
2.46 |
| Turning
diameter, curb-to-curb (m/ft) |
12.0
/ 39.4 |
12.9
/ 42.3 |
| Turning
diameter, wall-to-wall (m/ft) |
12.3
/ 40.3 |
13.2
/ 43.3 |
| Brakes |
| Type |
Four-Wheel Disc |
| Anti-lock
system |
Four-Wheel
(Bosch S.3) |
| Rotor
dia. X thickness, front (mm/in) |
325
x 32 / 12.8 x 1.26 |
| Rotor
dia. X thickness, rear (mm/in) |
305
x 26 / 12 x 1.02 |
| Swept
area, front,rear (sq cm/in) |
1696
(F) 1018.0 (R) / 263 (F) 158 (R) |
| Wheels
& Tires |
| Tires,
size>
| Front
- P245/45ZR-17 |
Front
- P265/40ZR-17 |
| |
Rear
- P275/40ZR-18 |
Rear
- P295/35ZR-18 |
| Tires,
mfg./type |
Goodyear
Eagle |
| |
Extended-Mobility F1 GS |
F1 SC |
| Wheels,
size (in) |
Front
- 17 X 8.5 |
Front
- 17 X 9.5 |
| |
Rear
- 18 X 9.5 |
Rear
- 18 X 10.5 |
| Wheels
(standard) |
Cast
Aluminum |
Forged
Aluminum |
| Wheel Color |
(Silver
Sparkle) |
(Lt.
Gray) |
| Wheels
(optional) |
Forged
Aluminum (polished) or Cast Magnesium |
N/A |
| Number
of studs |
5
(front & rear) |
5
(front & rear) |
| Spare |
None |
None |
| |
Extended-Mobility
Tires |
(GM
Tire Inflator Kit included) |

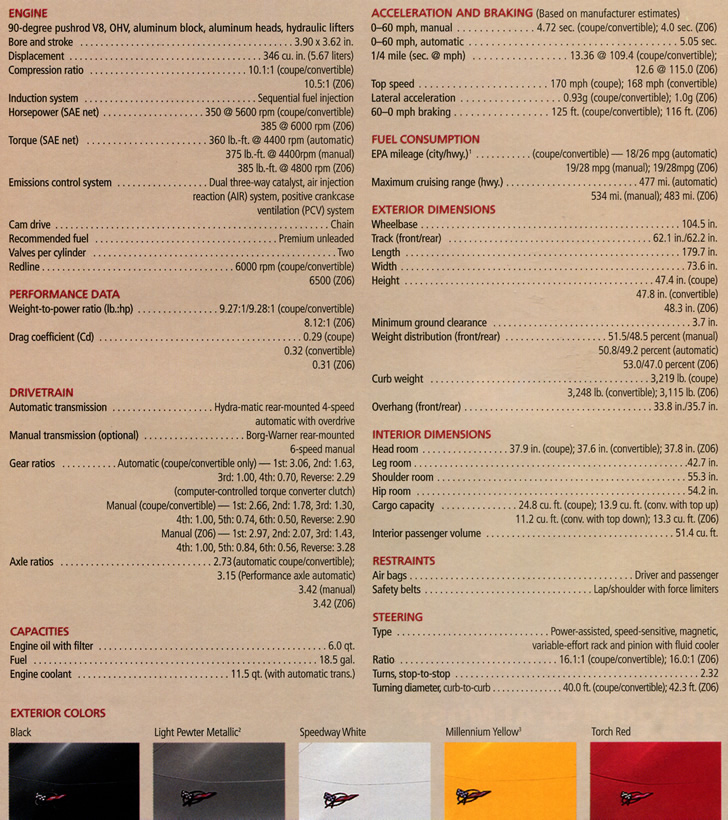

| Engine |
| Order
Code |
LS1 |
LS6 |
| Type |
Overhead-Valve
(OHV)
Pushrod V-8 |
Overhead-Valve
(OHV)
Pushrod V-8 |
| Displacement |
5.7L
/ 5665 cc |
5.7
/ 5665 cc |
| Fuel
Induction System |
Sequential
Fuel Injector |
Sequential
Fuel Injector |
| Horsepower
(SAE net @ RPM) |
350
@ 5,200 |
385
@ 6,000 |
| Torque
(lbs-ft @ RPM) |
375
@ 4,400 (manual)
360 @ 4,000 (automatic) |
385
@ 4,800 (manual) |
| Redline
(RPM) |
6,000 |
6,500 |
| Fuel
Shutoff RPM |
6,200 |
6,600 |
| Compression
ratio |
10.1:1 |
10.5:1 |
| Firing
Order |
1-8-7-2-6-5-4-3 |
| Block |
Cast
Aluminum |
| Cylinder
Heads |
Cast
Aluminum |
| Intake
Manifolds |
Composite |
| Exhaust
Manifolds |
Cast
Nodular Iron |
| Valves
per Cylinder Heads |
2 |
| Hydraulic
Roller Lifters |
Standard |
| Roller
Rocker Arms |
Standard |
| Crankshaft |
Cast
Iron w/Rolled Fillets |
| Camshaft |
Hollow
Steel |
| Main
Bearing Caps |
Powder
Metal |
| Bore
X Stroke (in/mm) |
3.90
x 3.62 / 99.0 x 92.0 |
| Cam
Drive |
Chain |
| Recommended
Fuel |
Premium
Unleaded |
| Recommended
Lubricant |
5W/30
Mobil 1 Synthetic or equivalent |
| Recommended
Oil Change Interval |
15,000
miles or 1-year (under normal use) |
| Emissions
Control (NLEV Compliant) |
Catalytic
Converter, 3-way Catalyst, Air Injector Reaction(AIR),
Positive Crankcase Ventilation(PCV) |
| Additional
Features |
Extended
Life Spark Plugs, Extended Life Coolant, Oil Level
Sensor,Oil Life Monitoring System |
| Engine
Manufacturing |
St. Catherines, Ontario |
| Fuel
Consumption(1) |
| Manual
trans., EPA mileage (mpg city/hwy) |
19/28 |
19/28 |
19/28 |
| Automatic
trans., EPA mileage (mpg city/hwy) |
18/26 |
18/26 |
N/A |
| Max.
cruising range, man/auto (mi) |
518/481 |
518/481 |
518/na |
| Max.
cruising range, man/auto (km) |
834/774 |
834/774 |
834/na |
| (1)
EPA labeling estimates apply to all Corvette models.
Actual results may vary depending upon equipment level
and driving habits. |
| Drivetrain |
| Type |
Front
Engine, Rear Wheel Drive |
| Transmissions |
Standard
w/coupe & convertible |
Optional
w/coupe & convertible |
Standard
(w/Z06) |
| |
Hydra-Matic |
Borg-Warner
(Tremec) |
Borg-Warner
(Tremec) |
| |
Rear-Mounted |
Rear-Mounted |
Rear-Mounted |
| |
4-Speed
Automatic |
6-Speed
Manual |
6-Speed
Manual |
| |
(4th
Gear Overdrive) |
(5th
- 6th Gear Overdrive) |
(5th-
6th Gear Overdrive) |
| |
(4L60-E) |
(T56) |
(T56) |
| Transmission
Order Code |
M30 |
MM6 |
M12 |
| Traction
Control System |
Electronic;
uses ABS brake system, electronic throttle control and
spark retardation to control excessive wheelspin |
| Gear
Ratios |
| |
M30
4-Speed Automatic |
MM6
6-Speed Manual |
M12
6-Speed Manual |
| |
(Standard
w/coupe & convertible) |
(Optional
w/coupe & convertible) |
(Standard
w/Z06) |
| 1st |
3.06:1 |
2.66:1 |
2.97:1 |
| 2nd |
1.63:1 |
1.78:1 |
2.07:1 |
| 3rd |
1.00:1 |
1.30:1 |
1.43:1 |
| 4th |
0.70:1 |
1.00:1 |
1.00:1 |
| 5th |
- |
0.74:1 |
0.84:1 |
| 6th |
- |
0.50:1 |
0.56:1 |
| Reverse |
2.29:1 |
2.90:1 |
3.28:1 |
| Axle
Ratio |
2.73:1
(std) / 3.15:1(perf)(2) |
3.42:1 |
3.42:1 |
| Final
Drive Ratio |
1.90
(std) / 2.19 (perf)(2) |
1.71 |
1.92 |
| (2)
with optional Performance axle (available only with
automatic) |
| Exterior
Dimensions |
| Wheelbase
(mm/in) |
2655.5
/ 104.5 |
2655.5
/ 104.5 |
2655.5
/ 104.5 |
| Length,
overall (mm/in) |
4565.6
/ 179.7 |
4565.5
/ 179.7 |
4565.6
/ 179.7 |
| Height,
overall (mm/in) |
1211.5
/ 47.7 |
1214.7
/ 47.8 |
1211.5
/ 47.7 |
| Tread
Width, front (mm/in) |
1572.3
/ 61.9 |
1572.3
/ 61.9 |
1584.5
/ 62.4 |
| Tread
Width rear (mm/in) |
1574.5
/ 62.0 |
1574.5
/ 62.0 |
1589.5
/ 62.6 |
| Interior
Dimensions |
| Head
Room (mm/in) |
963
/ 37.9 |
955/37.6 |
960
/ 37.8 |
| Leg
Room (mm/in) |
1085
/ 42.7 |
1085
/ 42.7 |
| Shoulder
Room (mm/in) |
1405
/ 55.3 |
1405
/ 55.3 |
| Hip
Room (mm/in) |
1377
/ 54.2 |
1377
/ 54.2 |
| Capacities |
| Passenger
capacity |
2 |
2 |
2 |
| Interior
Passenger Index (liters/cu ft) |
1455
/ 51.4 |
Data
Not Available |
1464
/ 51.7 |
| Cargo
capacity (liters/cu.ft.) |
702
/ 24.8 |
394
/ 13.9(1) |
377
/ 13.3 |
| Fuel
tank (liters/gallons) |
70.0
/ 18.5 |
| Engine
oil w/filter (liters/quarts) |
6.15
/ 6.5 |
| Engine
coolant (liters/quarts) |
10.9
/ 11.5 (11.2 / 11.8 w manual trans.) |
| Battery
Type |
Absorbent
Glass Mat (AGM) |
| Performance
Data |
| Power-to-weight
ratio, auto. trans. (lbs:hp)(2) |
9.27 |
8.13 |
| Specific
output (hp:liter) |
61.8 |
68 |
| Acceleration (3) |
| 0-60
mph, man. trans. (sec.) |
4.5
(manual), 5.0 (auto) |
4.0
(manual) |
| Top
Speed (kph/mph)(4) |
281.6 / 175 |
275.2 / 171 |
| 1/4
mile manual (sec./mph) |
13.22 / 109 mph |
12.6
/ 114 |
| Lateral
acceleration (g) |
0.93 |
1.03 |
| (1)
with top up -- 318.0 / 11.2 with top down |
| (2)
w/automatic trans. on coupe/convertible, w/manual trans.
on Z06 |
| (3)
Data generated during closed-course development testing
& provided for reference purposes only. Actual results
may vary depending upon equipment, road surfaces, altitudes,
temperatures and other variables. |
| (4)
top speed is reached in 5th gear on manual - equipped
cars |
