Is this a Dream or–is that really my LS7?

Print Friendly and PDF

CAC Does the Corvette Engine Building Experience - Page 5 of 10

by Hib Halverson
© September 2012
No use without permission, All Rights Reserved

Previous page Next page
Click on the images for expanded views – it's much easier on the eyes.

We moved the cart to the next assembly station. The rod/piston combos are installed with the most snazzy, tapered ring compressor I'd ever seen along with a plastic guide on the big end of the rod to keep it from scrapping across the crank journal. I put each piston in the fancy compressor, set that on the block deck and pushed the piston quickly and firmly into the block. The plastic guide insures the rod's big end and upper bearing shell meet the crank journal squarely. The rod bolts were run down with an electric driver, then, once all eight pistons were in, I used another spindle multiple to properly torque each pair of rod bolts simultaneously and effortlessly. Hey–I'm liking this power tool stuff.

Click for larger view

Image:  Mark Kelly/GM Powertrain

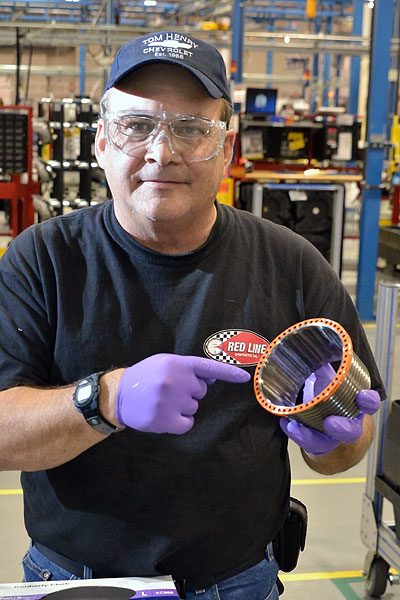

Next motor I do in my shop, I want one of these.
Click for larger view

Image:  Mark Kelly/GM Powertrain

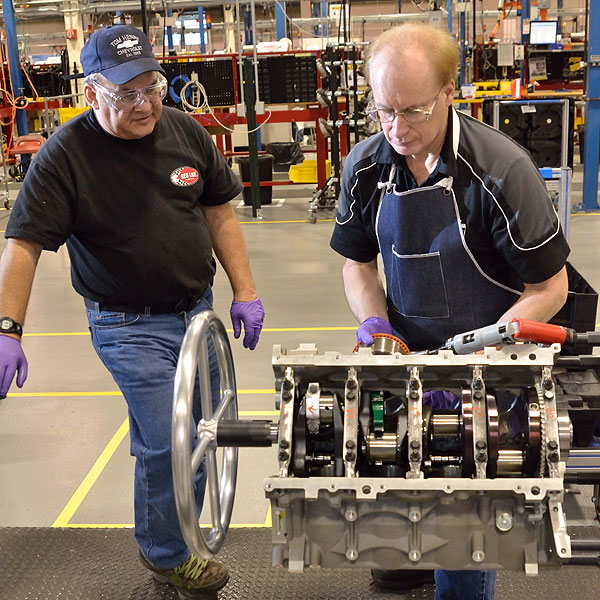

Mike did the first two to sorta show me the ropes.
Click for larger view

Image:  Mark Kelly/GM Powertrain

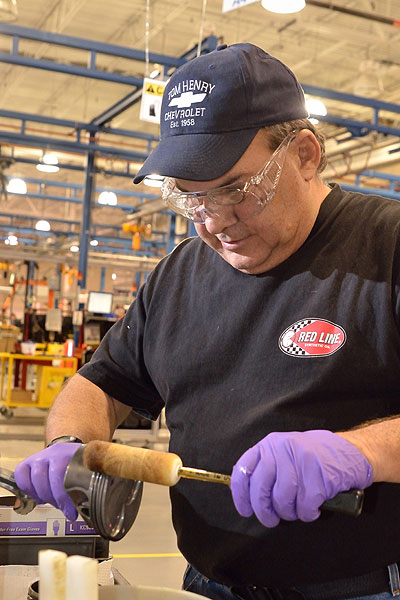

First, you swab the piston skirts and ring lands with engine oil.
Click for larger view

Image:  Mark Kelly/GM Powertrain

Then, you put the piston into the ring compressor and add the plastic guide.
Click for larger view

Image:  Mark Kelly/GM Powertrain

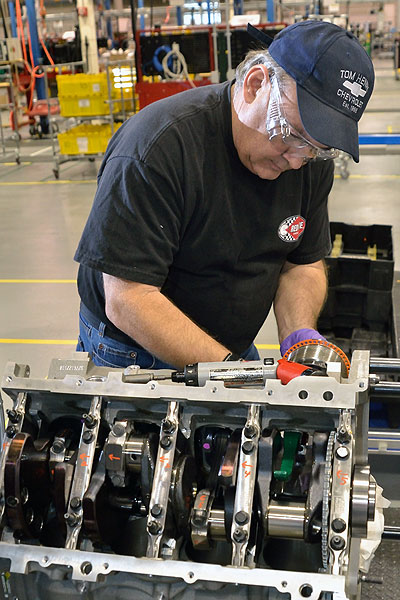

Finally, you align the rod with the crank then holding the compressor on the head deck with one hand you push the piston top with the other. The plastic guide on the upper half of the big end guides the rod onto the crankshaft journal.
Click for larger view

Image:  Mark Kelly/GM Powertrain

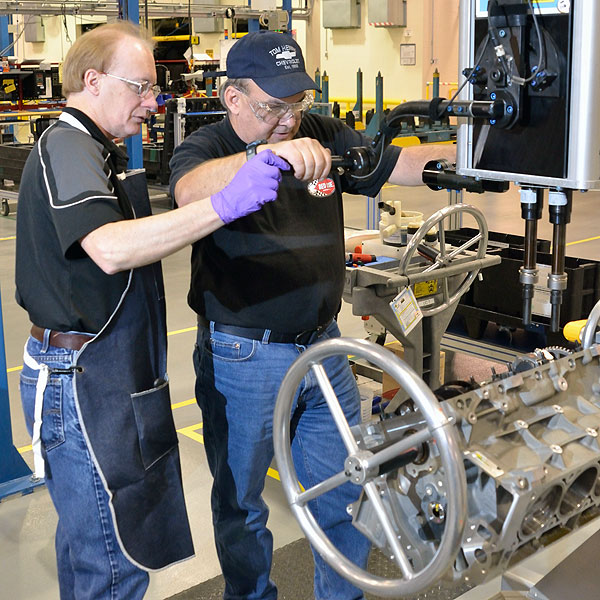

This Spindle Multiple is just for rod bolts. As with all the power wrenches, if the fastener has been tightened properly, the operator sees a green indicator light and the wrench sends tightening data to the PBC's server.
Click for larger view

Image:  Mark Kelly/GM Powertrain

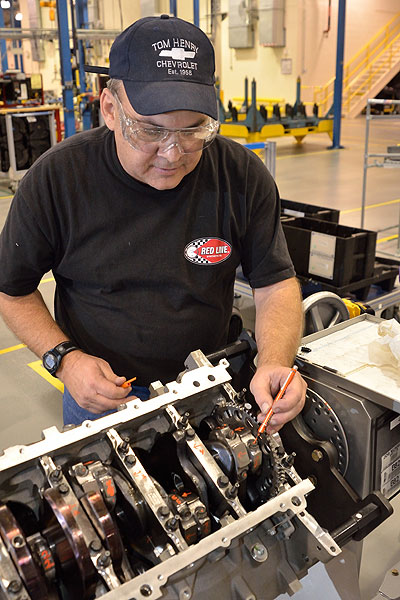

When a fastener is tightened, we give it a little fleck of orange paint. That way we Engine Builders can tell at a glance if a bolt has been missed. Seems redundant, I know, but it's actually quicker than looking at the computer display.
Click for larger view

Image:  Mark Kelly/GM Powertrain

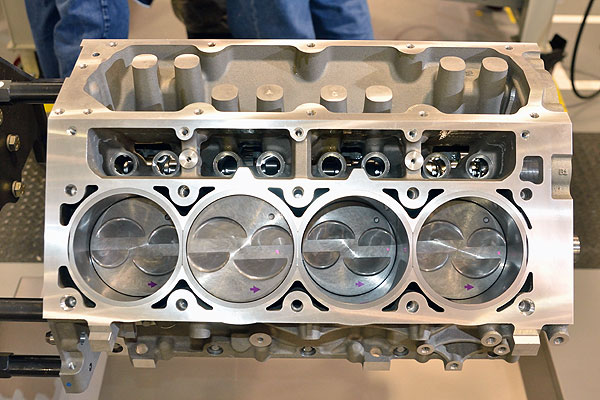

The short block is nearly finished.
