2009 Corvette ZR1: Ruthless Pursuit of Power: Supercharged Edition - Page 6 of 7

Print Friendly and PDF
Previous page Next page

© 2008 by Hib Halverson
No use without permission, All Rights Reserved

Discuss this article

click for larger view
Click image for larger view

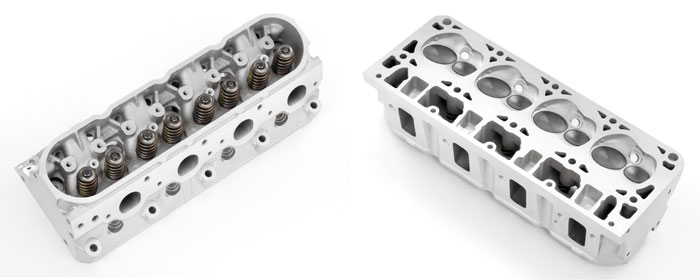

The LS9 head is based of the LS3 casting but has a lot of enhancements necessary to get it to live with the higher combustion pressures.
Image:  GM Powertrain
Cylinder Heads—Hot-Boxed and Rotacast

Early interations of the LS9 cylinder head were called the "Corvette Supersport Head" an acknowlegement that, at one time, what ended up the "ZR1" was originally going to be called the "Corvette SS". The LS9 cylinder head is based on the LS3/L92 unit, also discussed in our LS3 story, but has several differences: 1) its material is A356, a more robust variety of aluminum than the 356 used in the LS3 casting. The heat treat specification for both is T6.

2) It is cast with the "Rotacast™" method (sometimes known as "roll-over" casting) rather than the semi-permanent mold process used with other heads. Rotacasting begins with the molds inverted. As the molds slowly rotate 180, molten aluminum is poured in. Solidification begins before the mold stops rotating but isn't completed until after it stops. This process causes "directional solidification" which makes a stronger, less porous casting.

Because Rotacasting increases the stress on the LS9 water jacket core, it is made with the "hot-box" process. Water jacket cores for all Small-Block heads except those destined for supercharged engines are made with the "cold-box" process which uses "TEA" gas at room temperature to cure the resin in the core sand. SC heads are made with cores which are heat-cured. The "hot-box" process results in cores with higher tensile strength to better resist deflection during the rollover casting process.

3) Head structure was modified for compatibility with Rotacasting and reinforced with posts and ribs inside the cooling jacket, above the combustion chamber, to provide reliability/durability at the combustion pressures a supercharged engine sustains. The structure enhancement was difficult to execute in a manner that did not restrict coolant flow enough to degrade engine cooling.

click for larger view click for larger view click for larger view
Click image for larger view

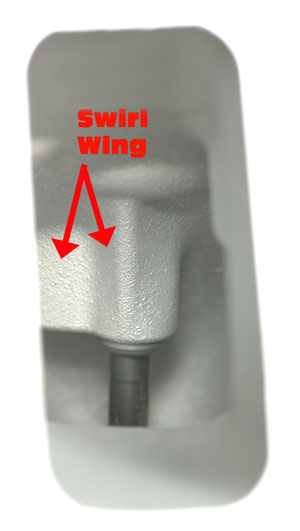

is the "view" air flow gets as it starts down the LS9 intake port. Once it gets to the leading edge of the reverse swirl wing, it's forced right and left. Flow going left is altered to enhance swirl by the trailing part of the wing.
Image:  Author
Click image for larger view

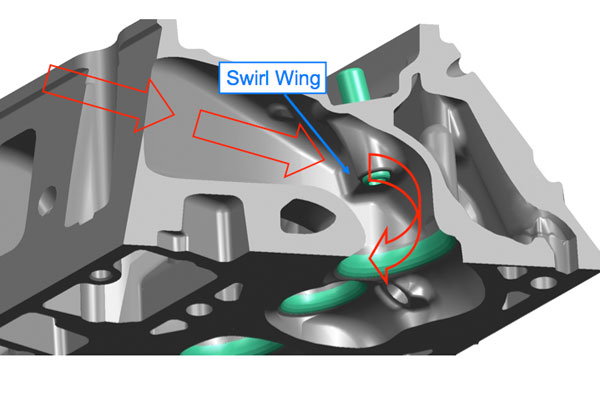

This math art show the flow forced right of the wing deflected to the port wall which further enhances the counterclockwise swirl.
Image:  GM Powertrain.
Click image for larger view

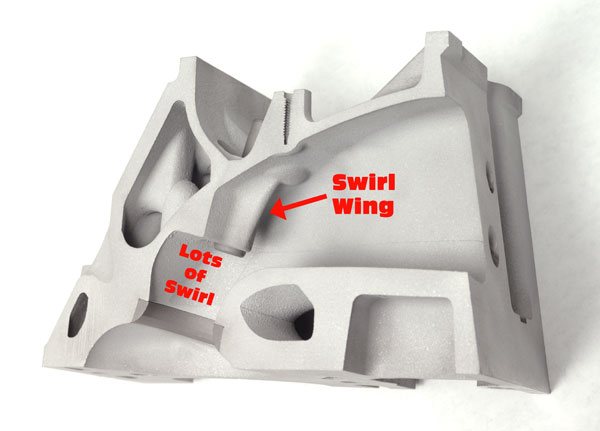

The area of enhanced swirl is just above the valve seat.
Image:  Author.

4) A small deflector-GM calls it a "swirl wing" was cast into the roof of each intake port, to the left of intake valve guide, where the roof begins to curve across the guide and down to the valve seat. "Swirl" is a high-velocity, cyclonic airflow motion which breaks-up the fuel droplets making the air/fuel mix more homogenous and promoting better combustion dynamics. With the LS3, L92 and LS9 head, swirl is counter-clockwise and takes place mostly in the section of the port engineers call the "bore" and enthusiast community calls the "valve throat" or the "pocket", with little or no swirl motion at the valve seat.

In the supercharged head, this deflector forces airflow to the bore-wall side of the port to enhance the swirl motion, once it gets into the bore. The swirl wing's effect increases combustion efficiency, reduces exhaust emissions and improves idle stability. While in a supercharged engine, these deflectors present virtually no restriction to air flow; in a normally aspirated application, they cause measurable power loss, so they are not present in the LS3/L92 casting.

It's been reported that this deflector exists to improve idle stability of the Cadillac offshoot of this engine, the LSA, however, while the swirl wing does, indeed, improve idle stability; it doesn't exist solely for that purpose. The main reasons for it are better combustion and lower emissions, across the board, on all the SC Small-Blocks and regardless of engine speed. It's, also, been reported that this air flow device was simply a bump in the port roof but, as you can see from our photos of the LS9 intake port, it truly is a deflector or "wing" and not a bump.

5) The LS9 intake valve seat is made of the same PMF28 material used by the LS7 but is the smaller, LS9 diameter. PFM28 is compatible with a titanium valve, whereas the Brico 3010 intake seats used in heads with steel intake valves are not. The LS3's Brico 3220, exhaust seat carries over. Also carrying to LS9 from the LS3 head is valve seats machined with three angles.

click for larger view click for larger view click for larger view
Click image for larger view

Because of the nature of an aluminum engine's thermal cycling and the high combustion pressures in the last few Gen 4s, LS3 and LS7, high-tech head gaskets have become the "thing" at GM Powertrain.
Image:  GM Powertrain
Click image for larger view

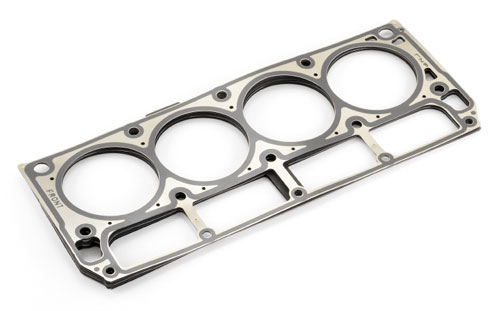

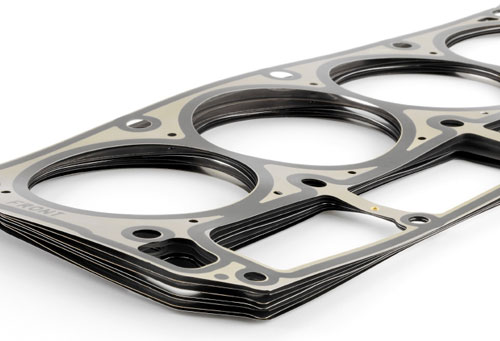

The LS9's gasket takes that trend to new heights with four active layers and seven layers, total.
Image:  GM Powertrain.
Click image for larger view

Further enhancement to head sealing comes with bigger head bolts, 12-mm on LS9 vs 11-mm on LS7, made of killer-strong, aircraft-quality stainless steel.
Image:  Author.

click for larger view
Click image for larger view

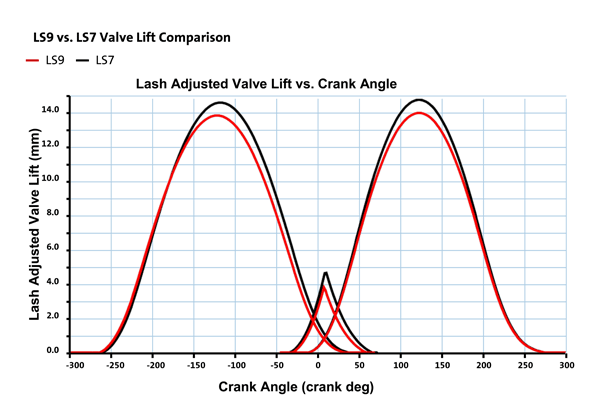

The LS9 vs the LS7 valve action profile.
Image:  GM Powertrain
With any supercharged engine, head gasket sealing is a critical issue. The LS9 gasket is an example of GM Powertrain advancing the state-of-the-art in sealing technology. It uses the multi-layer steel design (MLS) which, by now, is becoming commonplace with Gen 4 engines, but it's an unprecedented, seven-layer design with four "active" compressible layers. Without four active layer head gaskets, M12 head bolts, and a stiffer head structure, all to reduce head "lift-off", the Small-Block Team would never have been able to reach the power output of the production LS9.

Cam and Valvetrain

As are all production Gen 3/4 camshafts, the cam in the LS9 is a rifle-drilled, steel billet and uses roller hydraulic lifters. Like the LS6 and 7, it uses a smaller base circle radius than other Gen 3/4 engines, in this case 18.9mm. Valve stem length is lengthened to match the smaller base circle radius.

The LS9 camshaft's intake and exhaust profiles are the same as that of the LS7. More than a decade of experience with high-performance versions of the Gen 3/4 engine family has proven they run best with long exhaust durations. That is also, true with supercharged engines, in general. Computer analysis showed that the LS7's 230 exhaust duration was ideal for the supercharged LS9 even though it was 51 cubic inches smaller and had a 500 rpm lower rev limit. Such are the benefits of boost.

LS9 valve lift is about .030" less than that of the LS7 because the two engines have different rocker arm ratios, 1.7:1 for LS9 and 1.8:1 for LS7. The exhaust valve timing is four degrees advanced to to reduce supercharger losses and accomplish a 27% overlap reduction in the interest of improving idle quality. The overlap decrease along with the cylinder heads' swirl wings contribute to about an 11% increase in idle quality, compared to the LS7.

Camshaft Profile, Intake Comparison

(All lift figures are valve lift)

year
RPO
int.
lift
int. dur.
at .004
int. dur.
at .050
int. open
at .004
in. close
at .004
in. open
at .050
in. close
at .050
int.
CL
int.
area
int. area
increase
MY01 LS6

13.34 mm
.525 in
270
204
9
BTDC
81
ABDC
18
ATDC
42
ABDC
118
ATDC
1862.9
mm/deg.
n/a
MY02 LS6

14.01 mm
.551 in
267
204
7
BTDC
80
ABDC
19
ATDC
43
ABDC
120
ATDC
1936.9
mm/deg.
4%
MY05 LS2

13.34 mm
.525 in
270
204
9
BTDC
81
ABDC
18
ATDC
42
ABDC
118
ATDC
1862.9
mm/deg.
0
MY06 LS7
15.06 mm
.593 in
276
210
8
BTDC
88
ABDC
18
ATDC
48
ABDC
122
ATDC
2166.4 m m/deg.
16%
MY08 LS3

14.01 mm
.551 in
267
204
7
BTDC
80
ABDC
19
ATDC
43
ABDC
120
ATDC
1936.9
mm/deg.
4%
MY09 LS9
14.27 mm
.562 in
277
211
8
BTDC
89
 ABDC
18
ATDC
49
ABDC
122
 ATDC
2054.6
mm/deg.
10%

Camshaft Profile, Exhaust Comparison

(All lift figures are valve lift)

year RPO
exh.
lift
exh. dur.
at. .004
exh. dur.
.050
ex. open
.004
ex. close
.004
ex. open
.050
ex. close
.050
exh.
CL
exh.
area
ex. area
change
MY01 LS6
13.33 mm
.525 in
275
211
65
BBDC
30
ATDC
37
BBDC
6
BTDC
114
BTDC
1914.6
mm/deg.
n/a
MY02 LS6
13.91 mm
.547 in
282
218
69
BBDC
33
ATDC
42
BBDC
4
BTDC
115
BTDC
2046.6
mm/deg.
8%
MY05 LS2
13.33 mm
.525 in
275
211
65
BBDC
30
ATDC
37
BBDC
6
BTDC
114
BTDC
1914.6
mm/deg.
0
MY06 LS7
14.95 mm
.589 in
296
230
81
BBDC
35
ATDC
53
BBDC
3
BTDC
119
BTDC
2359.4
mm/deg.
23%
MY08 LS3
13.33 mm
.525 in
275
211
66
BBDC
29
ATDC
38
BBDC
7
BTDC
115
BTDC
1914.6
mm/deg.
0
MY09 LS9
14.17 mm
.558 in
295
230
84
BBDC
31
ATDC
56
BBDC
6
BTDC
123
 BTDC
2238.6
mm/deg.
17%

Valve sizes, 2.165-in, intake, and 1.580-in., exhaust, are the same as LS3, however, the LS9 uses titanium intake valves, whereas the LS3's are stainless steel. GM Powertrain went to the ti valve even though the engine's rev limit is the same as that of the LS3 because: 1) the valve head had to be beefed-up to withstand the additional combustion pressure present in a supercharged engine and 2) the LS9 camshaft, by virtue of being just a bit more aggressive, required a slightly lighter valve.

Those needs were impossible to meet with the LS3 intake, even with its hollow stem, so GM upgraded the LS9 to lighter, R54620 titanium intake valves. Like the LS7's ti valves, LS9 units are treated with a chrome-nitride, anti-corrosion/anti-wear coating and have their stems precision-fitted with steel lash caps. The exhaust valves have 422 stainless steel heads and hollow, sodium-filled, SilChrome stems. Like LS3, faces on both valves have 45° angles.

click for larger view click for larger view click for larger view
Click image for larger view

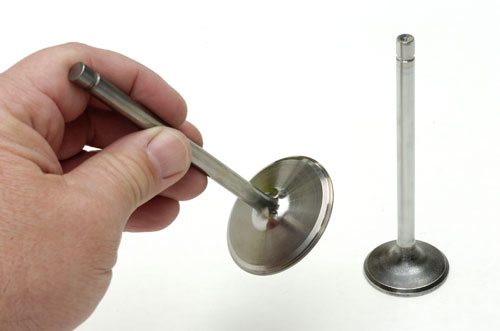

While other versions of the 6.2-liter supercharged engine are in the pipeline for the Cadillac CTS-V in '09 and trucks maybe in '10, only the LS9 uses special valves. The intake (left) is just, so darn pretty.
Image:  Author
Click image for larger view

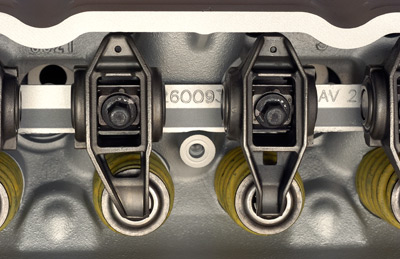

The LS3/L92/LS9 intake port has a shape quite different than that of the LS1/LS2/LS6. To use that port, the packaging of the valve train had to change with the intake pushrod moving sideways. That drove development of an offset intake rocker. More information on this is in the CAC's LS3 article.
Image:  Author.
Click image for larger view

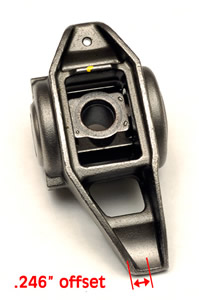

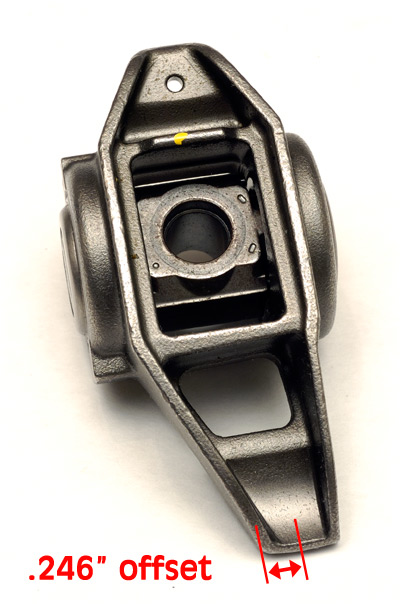

The LS9 intake rocker's offset is nearly a quarter of an inch. The material remains investment-cast steel. The rockers are typical of O.E.s in that they have roller trunnions but not roller tips. Roller tips are really not necessary and are used in aftermarket aluminum rockers because its easier to add a roller rather than some other method of hardening the valve tip.
Image:  GM Powertrain.

Other LS9 valvetrain parts, including the offset intake rocker arms, carry over from the LS3. See the CAC's LS3 article for more details.
