1973 Corvette: Electrical Schematics

Article ID: 193 | Rating: Unrated | Last Updated: Sun, Jul 13, 2014 at 8:29 PM

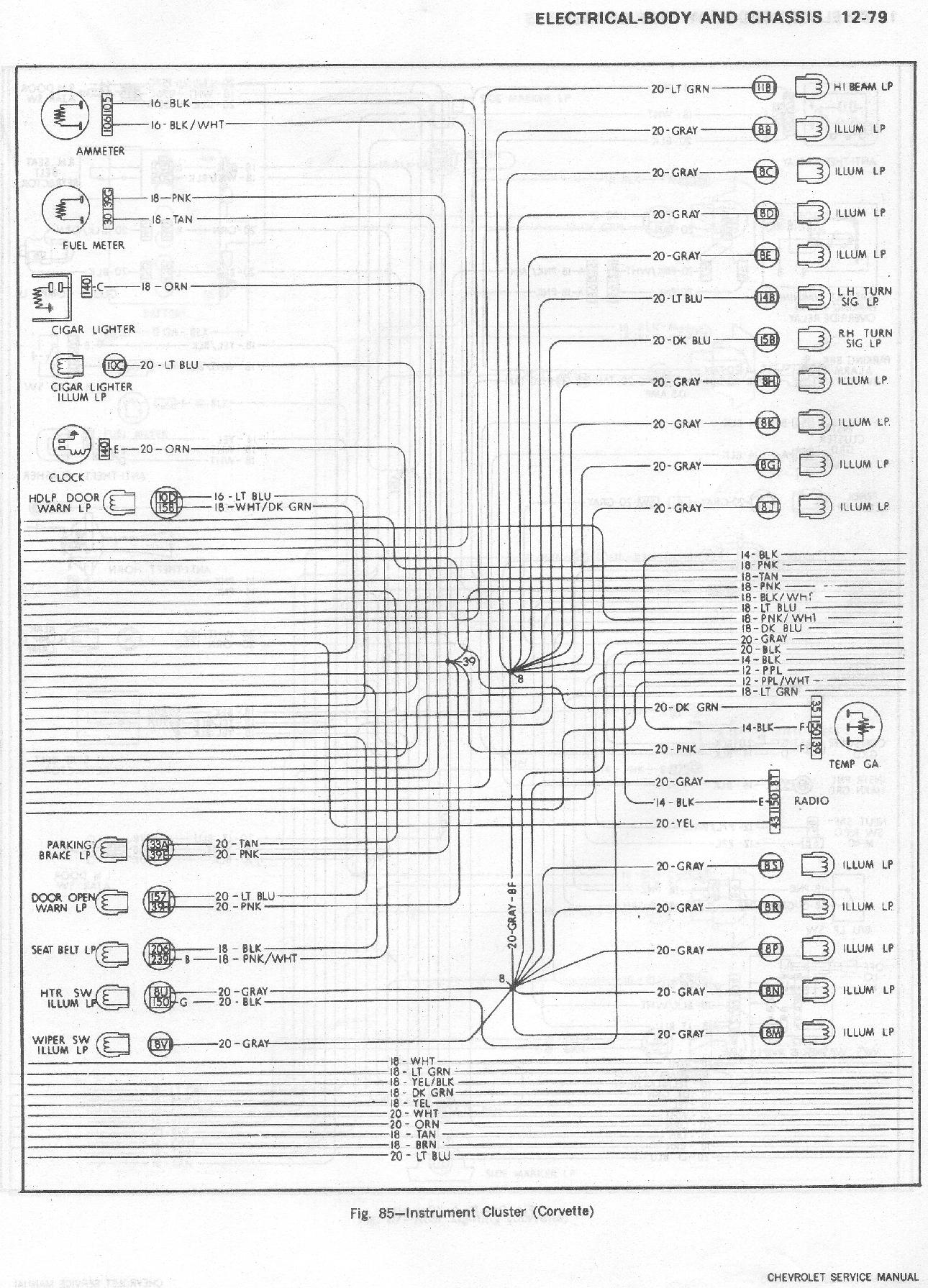

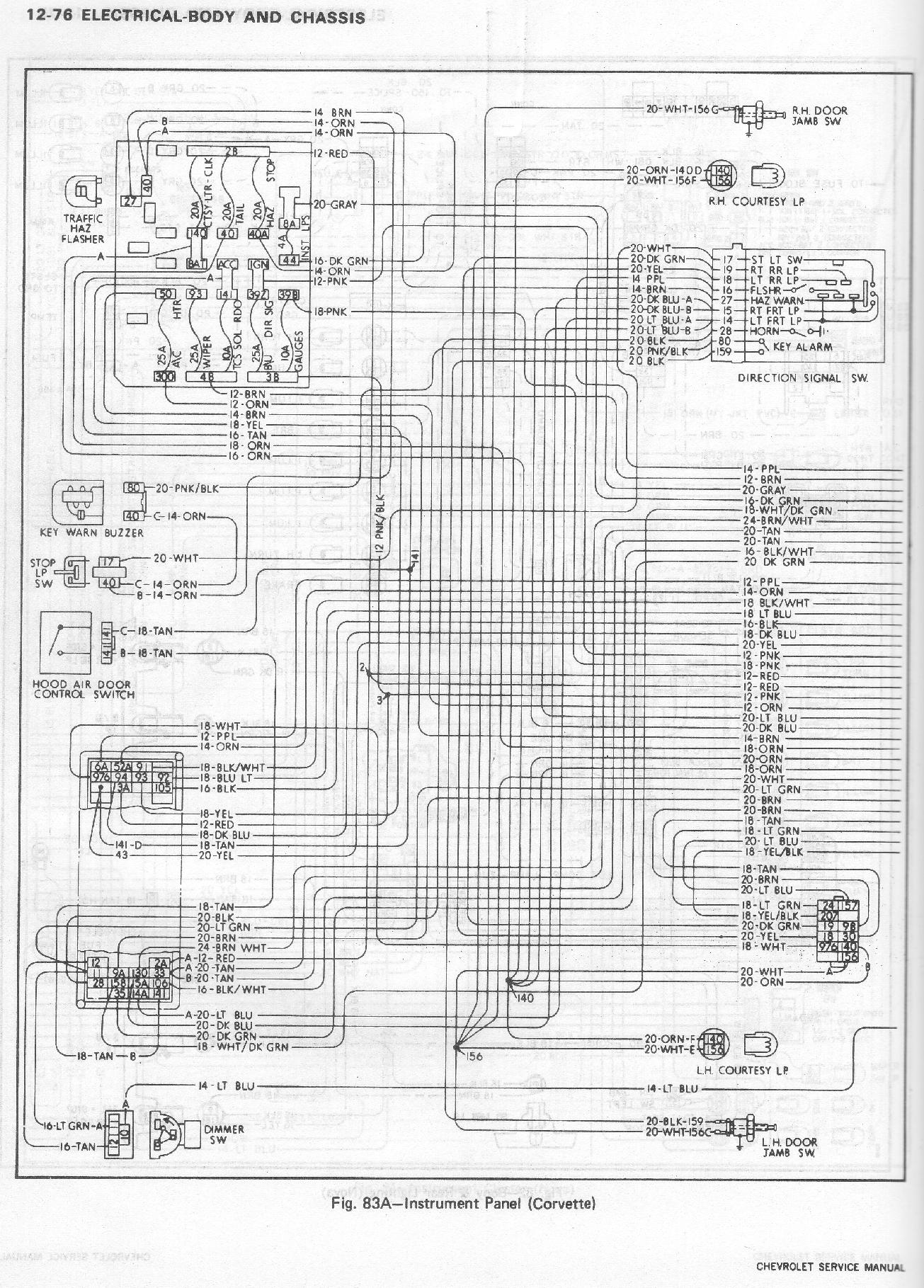

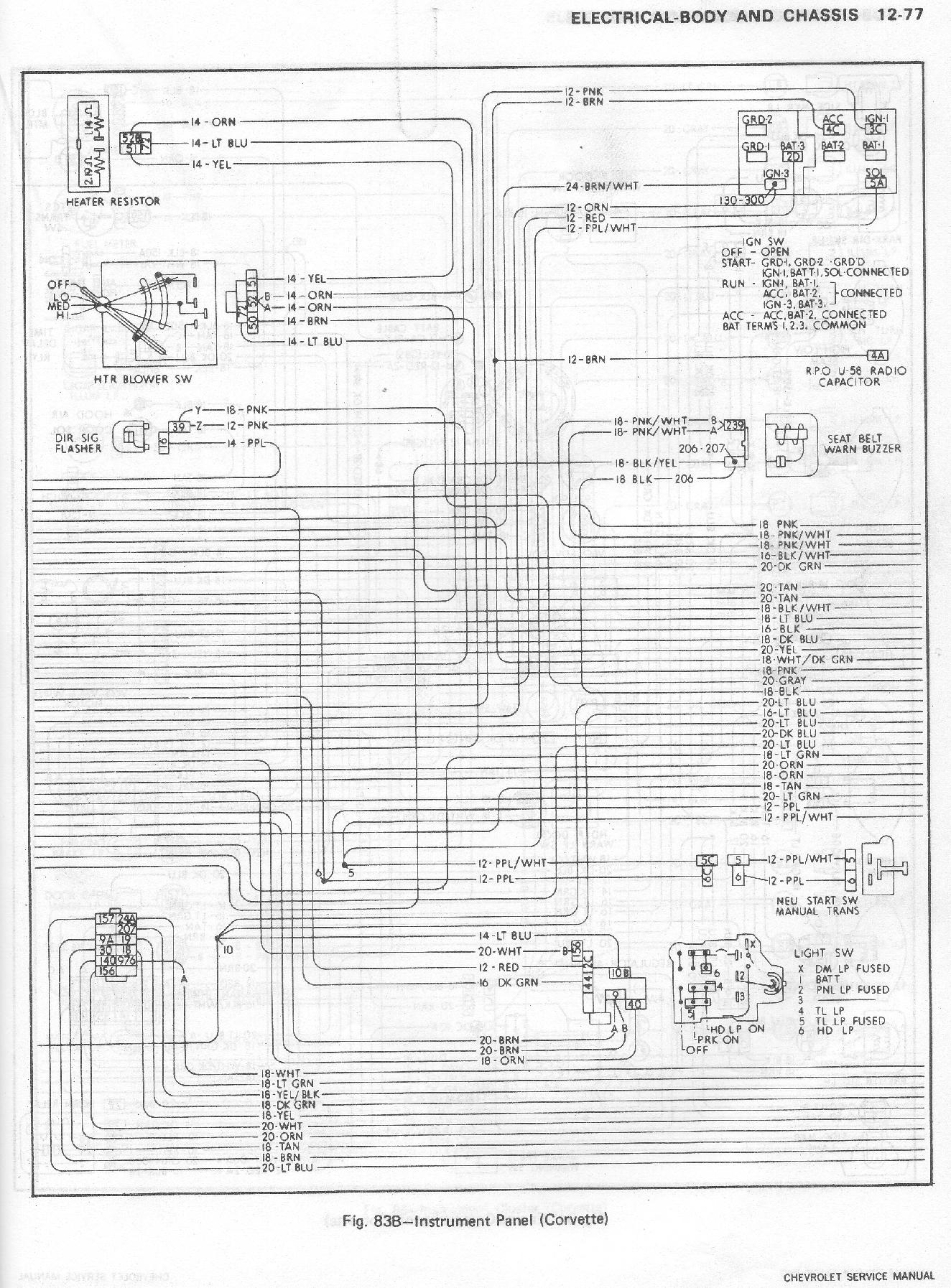

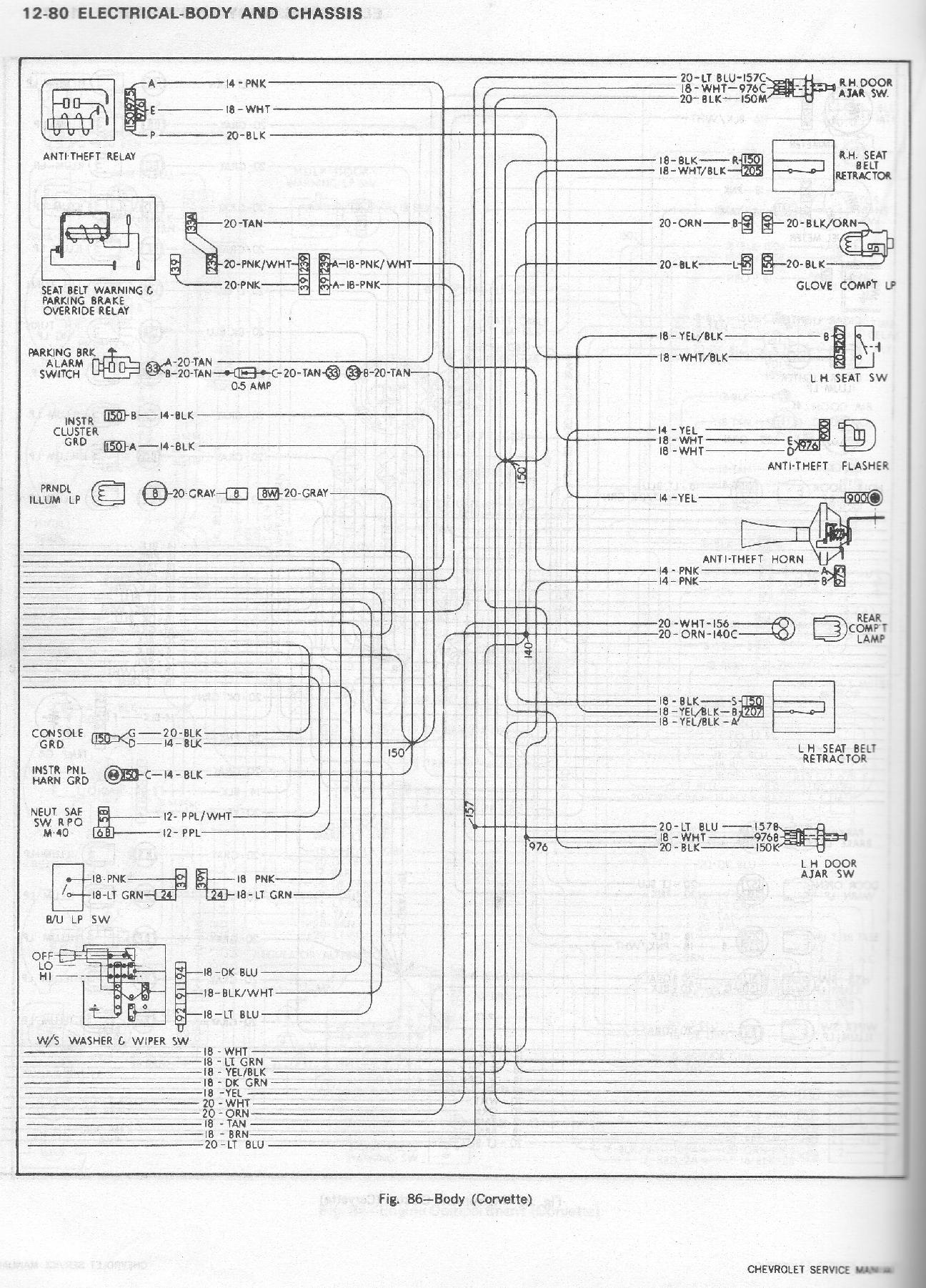

Attached below are copies of the wiring diagrams from the 1973 factory service manual.  These diagrams are of the main wiring harness running from front to back.
