1984 Corvette: Increasing Instrument Cluster Illumination

Submitted by geekinavette (Bill Hitchcock)

I've had a problem with the photocell in my '84 cluster since I bought it. During the day the cluster is too dim to see...unless you turn the park lights on. What I did temporarily to "fix" it so that I could see the thing during daytime is take the cluster apart and "jumper" the photocell leads together...but this disables the ability to dim the cluster at night with the headlight switch dimmer.

So...I took the cluster out again and started experimenting with some different photocells (it's on my workbench connected to a benchtop power supply). What I found that works pretty good is a photocell that Radio Shack stocks in most stores. It's actually in a "kit" of 5 different photocells. The kit part number is 276-1657. There are three small cells and two large cells in the kit. The one to use is one of the smaller select the right one use an ohm-meter and use the one that measures the highest resistance. Make SURE that the ambient light does NOT change when you are measuring the resistance of these cells. Even a slight shadow will effect the resistance of the cell.

Replacing the bad photocell can be done without removing the LCD driver board from the cluster, but you will have to remove the CPU board. You will also need to remove the clear plastic cover over the photocell from the front of the cluster. Use an xacto knife to pry the plastic plugs out:

Using a good soldering iron and some solder wick, de-solder the old photocell and it can be pulled out of the front of the cluster (tip - put a little solder flux on the wick and it will work MUCH better).

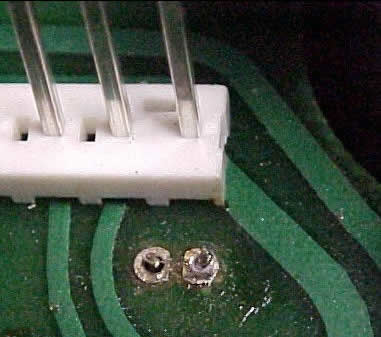

Once the solder is wicked up from around the pin, it should look like this (the left one):

With a pair of tweezers you should be able to move the pin around inside the thru-hole in the board…that’s when you know the solder has been removed. Be careful not to apply the heat of the soldering iron too long or the pad will lift off of the board, 5 seconds or so at a time should be enough.

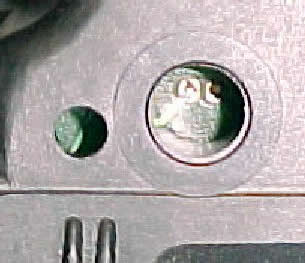

Once both pins have been de-soldered the old photocell can be pulled out from the front of the cluster.

Once the old photocell is removed you will notice that the Radio Shack replacement is quite a bit larger than the old one. It will fit nicely in the hole in the cluster, you just won’t use the plastic shroud that the old one did.

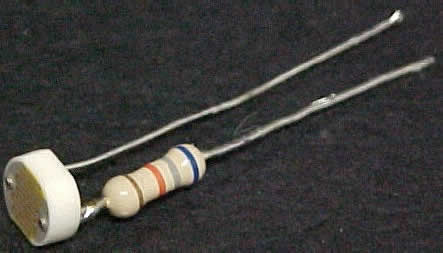

Before installing the new photocell a series 68K ohm resistor needs to be soldered to one of the photocell leads (it doesn’t matter which lead, the photocells are non-polarized resistive devices). Cut one of the leads down leaving just enough to solder the resistor to.

Then just insert the photocell/resistor assembly into the hole in the front of the cluster and push the leads through the holes in the LCD driver board. It’s a little tricky to get the leads lined up with the holes in the PCB board. Again, it does not matter which lead goes to which hole in the PC board. Once the photocell/resistor combo is in it will look something like this:

With the series resistor the cell will not sit all the way back in the hole in the front of the cluster. In this picture I used a ½ watt resistor (that’s all I had). If you use a ¼ watt resistor the photocell will be able to sit a little deeper in the hole.

Solder the new photocell leads in place, trim them off and you’re ready to put it all back together.

Here are some specs on the Radio Shack part (manufactured by Hamamatsu)

  • Radio Shack part number: 276-1657 (for the 5-piece kit)
  • Hamamatsu part number: P201D-5R (for the photocell that is used)
  • Cell resistance: 48K-140Kohm @ 10LX / 20Mohm min @ 0LX (dark)
  • Cost: $2.49 (for the 5-piece kit)

As an alternative there is a photocell manufactured by Photonic Detectors available from Digikey that has the same resistance specs as the Radio Shack/Hamamatsu part:

Photonic Detectors part number: PDV-9005-1

Cost: about $0.25

The Photonic Detectors part is much smaller than the Radio Shack part, closer to the size of the original photocell, but will still require the use of the 68K series resistor.

Another part that I think would work without having to use the series resistor is Photonic Detectors part number PDV-P8107 (also available from Digikey). I don’t have one of these to test, though I might do this in the near future while the cluster is still on my bench.

DISCLAIMER:  This How-To article contains information from other Corvette owners and enthusiasts that are members of the Corvette Action Center forums. Any information used from this How-To section is used at your own risk. Although we do our best to screen and verify the information provided here, the Corvette Action Center is not responsible for any inaccuracy in this How-To section. Always consult your service manual and/or a qualified automotive service technician before conducting any type of automotive repairs or modifications on your own. For further information, please review our Legal Disclaimer.

0 (0)
Article Rating (No Votes)
Rate this article
Attached Files
There are no attachments for this article.
Comments (1)
Comment by Paul on Thu, Sep 25th, 2014 at 10:56 AM
Awesome article! I have a couple questions...Does the resistor need to be exactly 68K? I have a 56K and a 120K, will either of those work?Can I use an 1/8 watt resistor (or even 2 in series)? I have 2 33K 1/8 watt units that I can put one on each leg. Would something like that work?Thanks!
