    "Wiggle Testing - How to Perform the On-Engine Test for LS7 Valve Stem to Guide Clearance - Page 2 of 4

    Print Friendly and PDF

    by Hib Halverson
    © December 2014
    No use without permission, All Rights Reserved

    Click on the images for expanded views - it's much easier on the eyes.
    Previous page Next page
    Click for larger view

    Image:  Author

    If you are using the LPE Spring Compressor, when you drop the tool down onto the retainer make sure the retainer is centered in the tool. Image: Author.
    Click for larger view

    Image:  Author

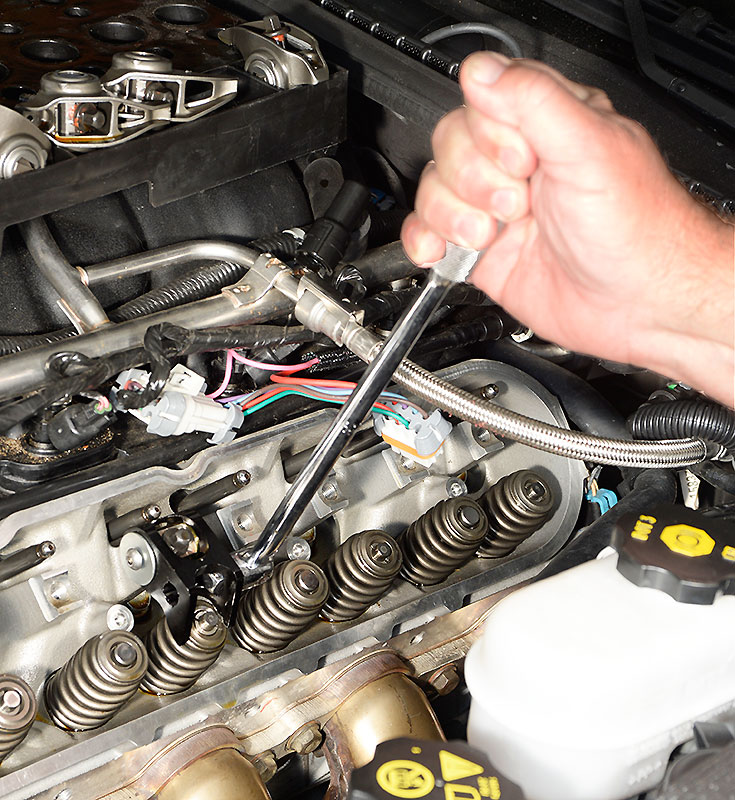

    Apply force with either a 3/8-ths, long handle ratchet or a 3/8-ths breaker bar. Image: Author.
    Click for larger view

    Image:  Author

    Best way to grab the valve locks is with a magnet. Otherwise, its too easy to drop those slippery little devils. Image: Author.
    Click for larger view

    Image:  Author

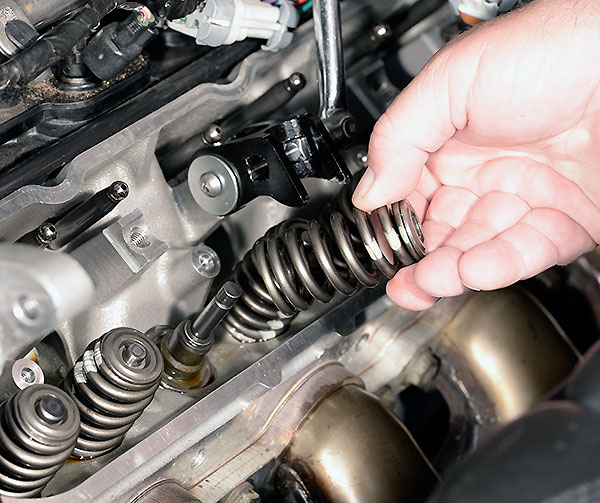

    Once the locks are off, slowly release the spring pressure, lift the LPE Compressor up and remove the spring. Image: Author.

    Start with the intake valve. To use the Lingenfelter compressor on offset intake rocker arms, set it on the rocker mount, twist the tool such that it aligns with the valve spring retainer then make the bolt finger tight. The load of spring compression is applied to the bolt in tension, so having the tool's pivot centerline at an angle to the rocker mount is not a problem. Attach a long-handle ratchet or a breaker bar and pull down on the handle-a lot of strength is not required-such that the retainer is depressed enough for you to remove the valve locks with a magnet. When you pull down on the compressor, if the valve goes down, too, release the pressure, loosen the rocker bolt and turn the tool out of the way. Pick a socket about the same diameter as the retainer, seat it on the retainer and give it a modest whack with a hammer. That will usually free the locks in the retainer. Recompress the spring, remove the locks, release the compressor and remove the retainer and spring. When you do an intake, the lash cap may come off with the retainer. We kept the locks, retainer and lash cap in a small plastic cup until we needed to reinstall them. Now, move the LPE spring compressor to the exhaust valve. Compress the spring, remove the locks then, release the pressure and remove the spring and retainer.

    Observe this note of caution about the Lingenfelter Spring Compressor: be carful when compressing the spring to remove the locks and when compressing it again to reinstall the locks. Because the retainer moves in an arc, if the tool is not positioned properly on the spring/retainer package before compression, it's possible to scrape the valve stem with the edge of the retainer's inside diameter. As the spring nears full compression, carefully, observe the retainer I.D. as it descends. If it's too close to the stem, release pressure and reposition the compressor. If you score an exhaust valve stem, it will have to be cleaned-up with a fine abrasive; but if you score an intake valve stem, you destroy its CrN coating and and the valve must be scrapped. Given the cost of titanium intake valves, do the utmost to avoid stem damage. This problem is why we prefer the LSM Spring Compressor which Summit Racing sells, in spite of its significantly higher price.

    Click for larger view

    Image:  Author

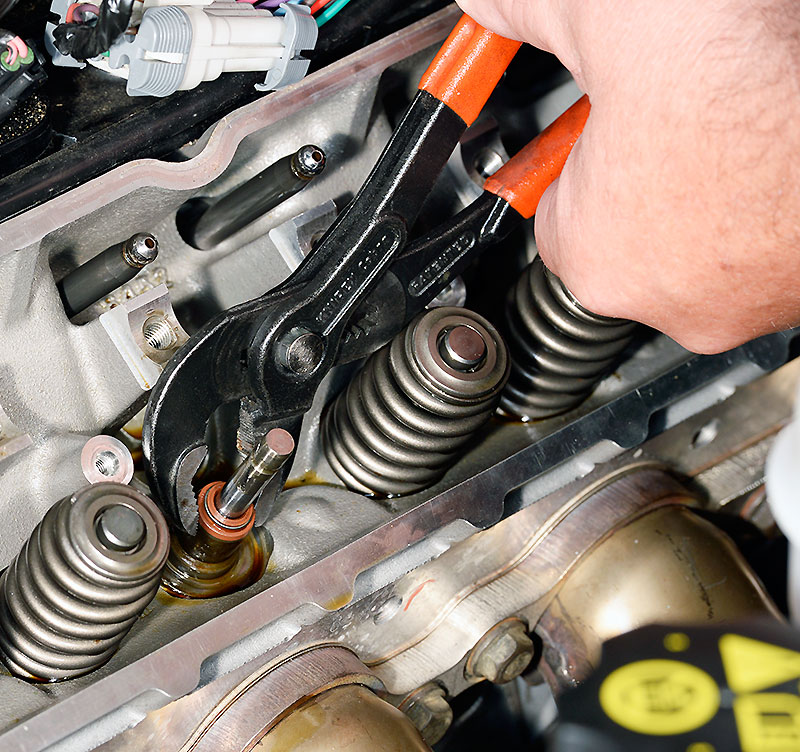

    Gently rock the valve stem seal with the pliers until it comes off the spring seat then lift the seal off with your fingers. Image: Author.
    Click for larger view

    Image:  Author

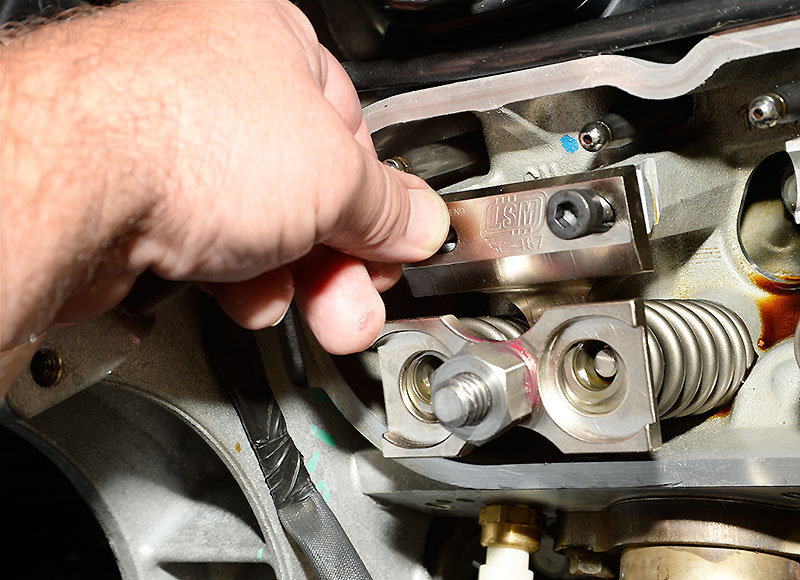

    If you are using Summit Racing's LMS Compressor, first, set the rocker fulcrum bar adapter in place. Then, set the tool on the two rocker mounts and tighten the two Allen bolts by hand. Image: Author.
    Click for larger view

    Image:  Author

    This is what the LMS Specialties LS7 Spring Compressor looks like when it's bolted down and ready to go. Image: Author.
    Click for larger view

    Image:  Author

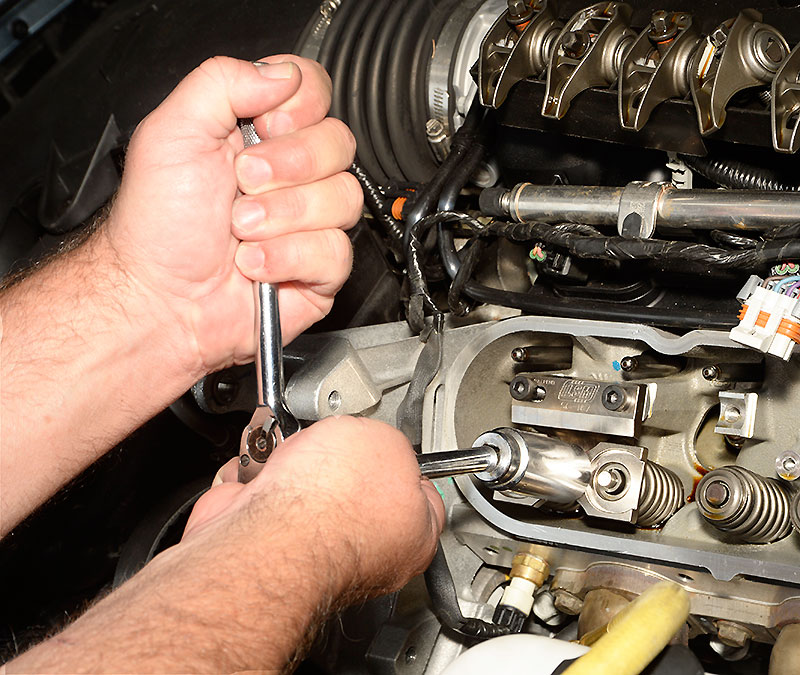

    The best tool to compress the springs is a 3/8-ths-drive, 7/8-ths deep socket and a short 3/8-ths ratchet. Image: Author.
    Click for larger view

    Image:  Author

    Run the big nut down until the locks are free then pick-up all four locks with a magnet. If you are doing an intake, remove the lash cap. Image: Author.

    The LMS tool is a little more time consuming to set-up, but it does both springs on a given cylinder simultaneously. First, set the rocker fulcrum adapter on the rocker arm fulcrums of cylinder in question. Back the big nut in the center out a ways, then, bolt the tool in place using the Allen bolts which come with it-finger tight is good enough. Use a 7/8-ths deep socket to carefully tighten the big nut, compressing the springs until you can use a magnet to grab the four locks. Run the bolt back up until you can remove the springs and retainers. Then, remove the tool and, if it didn't come off with its retainer, the intake valve lash cap.

    Click for larger view

    Image:  Author

    Springs and stem seals come off the same way with either Compressor. Image: Author.
    Click for larger view

    Image:  Author

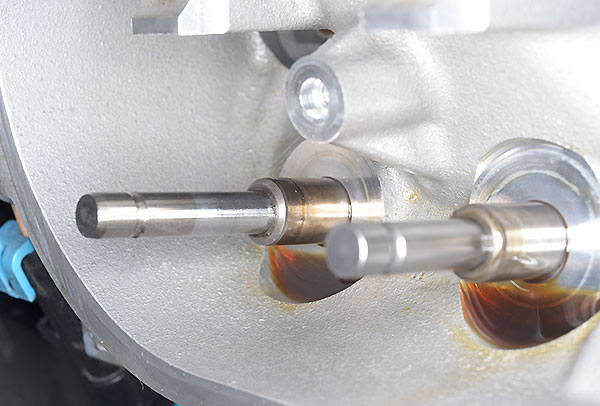

    If you're doing #1 cylinder, here's what you see when you are ready to wiggle. Image: Author.

    With the springs out of the way, disconnect the air pressure then, use slip-joint pliers-we like 10-in Knipex (PN 8701250) for this-to gently work the valve stem seals loose from the spring seats in the heads and remove them. With the piston at TDC, the valves will drop slightly until their heads sit on the piston top. Now you're ready to wiggle.
