    2002 Corvette Specifications

    Print Friendly and PDF
    General
    Model: Chevrolet Corvette Coupe, Convertible, Z06
    Body style / driveline: two-door hatchback coupe, convertible and hardtop; rear-drive, front-engine
    Body material: composite
    EPA vehicle class: two-seater
    Manufacturing location: Bowling Green, Kentucky
    Key competitors: Audi TT, BMW Z3, Dodge Viper, Porsche Boxster and Boxster S, Porsche 911
    Engines
      5.7L (LS1) V8 5.7L (LS6) V8
    Application: standard on Coupe, Convertible standard on Z06
    Type: 5.7-liter OHV 5.7-liter OHV
    Block material: cast aluminum cast aluminum
    Displacement (cu in / cc): 350 / 5665 350 / 5665
    Bore x stroke (in / mm): 3.90 x 3.62 / 99.0 x 92.0 3.90 x 3.62 / 99.0 x 92.0
    Cylinder head material: cast aluminum cast aluminum
    Valvetrain: overhead valve, two valves / cylinder overhead valve, two valves / cylinder
    Fuel delivery: SFI (sequential port fuel injection) SFI (sequential port fuel injection)
    Compression ratio: 10.1:1 10.5:1
    Horsepower (hp / kw @ rpm): manual: 350 / 261 @ 5200
    automatic: 350 / 261 @ 5200
    405 / 302 @ 6000
    Torque (lb-ft / Nm @ rpm): manual: 375 / 508 @ 4000
    automatic: 360 / 489 @ 4000
    400 / 542 @ 4800
    Recommended fuel: 91 octane 91 octane
    Maximum engine speed (rpm): 6000 6500
    Emission control system: catalytic converter, AIR catalytic converter, AIR
      4-speed automatic 6-speed manual
    Estimated fuel economy
    (mpg city / hwy / combined):
    19 / 28 / 23 (manual trans Coupe and Convertible)
    18 / 25 / 21 (auto trans Coupe and Convertible)
    19 / 28 / 23 (manual trans Z06)
    Transmissions
      4L60-E 6-speed manual 6-speed manual
    Application standard on Coupe and Convertible optional on Coupe and Convertible standard on Z06
    Gear ratios (:1):
    First: 3.06 2.66 2.97
    Second: 1.63 1.78 2.07
    Third: 1.00 1.30 1.43
    Fourth: 0.70 1.00 1.00
    Fifth: 0.74 0.84
    Sixth: 0.50 0.56
    Reverse: 2.29 2.90 3.28
    Final drive ratio (:1): std: 2.73; opt: 3.15 3.42 3.42
    Chassis/Suspension
    Front: short/long arm (SLA) double wishbone, cast aluminum upper & lower control arms, transverse-mounted composite leaf spring, monotube shock absorber
    Rear: short/long arm (SLA) double wishbone, cast aluminum upper & lower control arms, transverse-mounted composite leaf spring, monotube shock absorber
    Stabilizer bar diameter (in / mm):
    Standard: 0.75 / 19.1
    F45: 0.75 / 19.1
    Z51: 0.85 / 21.7
    FE4: 0.85 / 21.7
    Traction control: electronic traction control, active handling
    Steering: speed sensitive power-assisted rack-and-pinion
    Ratio: 16.1:1
    Steering wheel turns, lock-to-lock: 2.66
    Turning circle, curb-to-curb (ft / m): 40.2 / 12.1
    Brakes
    Type: power-assisted disc with ABS, front and rear
    Rotor diameter x thickness (in / mm): front: 12.6 x 1.26 / 325 x 32; rear: 11.8 x 1.0 / 305 x 26
    Swept area (sq in / sq cm): front: 263 / 1696; rear: 158 / 1018
    Wheels/Tires
      Coupe and Convertible Z06

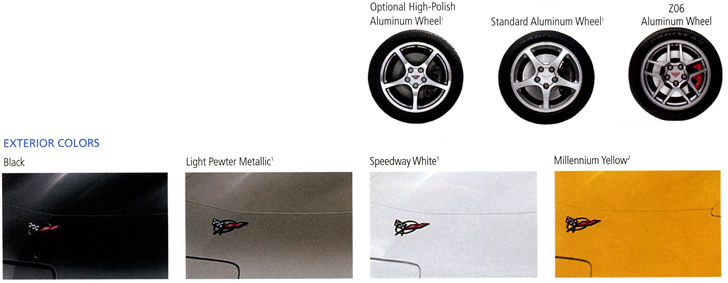

    Wheels: standard: cast aluminum
    optional: forged aluminum high polish
    cast spun aluminum
    Size, diameter x width: front: 17 x 8.5; rear: 18 x 9.5 front: 17 x 9.5; rear: 18 x 10.5
    Tires: Goodyear Eagle F1 GS
    Extended Mobility
    front: P245/45ZR-17
    rear: P275/40ZR-18
    Goodyear Eagle F1 SC
    Asymmetric Tread
    front: P265/40ZR-17
    rear: P295/35ZR-18
    Dimensions
    Exterior
      Coupe Convertible Z06
    Wheelbase (in / mm): 104.5 / 2655.5 104.5 / 2655.5 104.5 / 2655.5
    Overall length (in / mm): 179.7 / 4565.6 179.7 / 4565.5 179.7 / 4565.5
    Overall width (in / mm): 73.6 / 1869.4 73.6 / 1869.4 73.6 / 1869.4
    Overall height (in / mm): 47.7/ 1211.5 47.8 / 1214.7 47.7 / 1211.5
    Track (in / mm):
    Front: 61.9 / 1572.3 61.9 / 1572.3 62.4 / 1584.5
    Rear: 62.0 / 1574.5 62.0 / 1574.5 62.6 / 1589.5
    Base curb weight (lbs / kg): 3246 / 1458 3248 / 1456 3118 / 1414
    Weight distribution (% f / r): 51 / 49 51 / 49 53 / 47
    Interior
    Seating capacity (front / rear): 2 / 0 2 / 0 2 / 0
    Head room (in / mm): 37.9 / 963 37.9 / 963 37.8 / 960
    Leg room (in / mm): 42.7 / 1085 42.7 / 1085 42.7 / 1085
    Shoulder room (in / mm): 55.3 / 1405 55.3 / 1405 55.3 / 1405
    Hip room (in / mm): 54.2 / 1377 54.2 / 1377 54.2 / 1377
    Capacities
    Cargo volume (cu ft / liters): Coupe: 24.8 / 702; Convertible: 13.9 / 394; Z06: 13.3 / 377
    Fuel tank capacity (gals / liters): 18.5 / 70.0
    Engine oil w/ filter (qts / liters): 6.5 / 6.15
    Engine coolant (qts / liters): automatic: 11.5 / 10.9; manual: 11.8 / 11.2

    Paint Codes
    RPO Code Color Valspar Code PPG Code DuPont Code RM Code SW Code MS Code Azko Code WA Code
    11U Pewter Metallic N1248 5377 B9810 28019 54690 - GMA98:11 382E
    12U Quick Silver Metallic S565 5451 B9900 - 57059 - GMA99:12 519F
    21U Electron Blue Metallic L4396 195338 P1953 - 63987 - GMA02:21 779J
    28U Navy Blue Metallic L3325 5381 B9808 - 54695 - GMA98:28 352E
    40U Speedway White W132 4318 B8469 - 33755 - GMA84:40C 8554
    41U Black K090 9700 F02H 13572 33756 3069 GMA78:19 8555
    70U Torch Red R311 4230 B9008 20002 42027 - GMA91:70 9075
    79U Millennium Yellow Y1272 5593 MD413 - 58746 - GMA00:79 423G
    86U Magnetic Red Metallic II L2382/83 5402/03 B9803/04 - 54703/49762 - GMA98:86 379E

    Note: Information shown is current at time of publication.
